Step1: Product

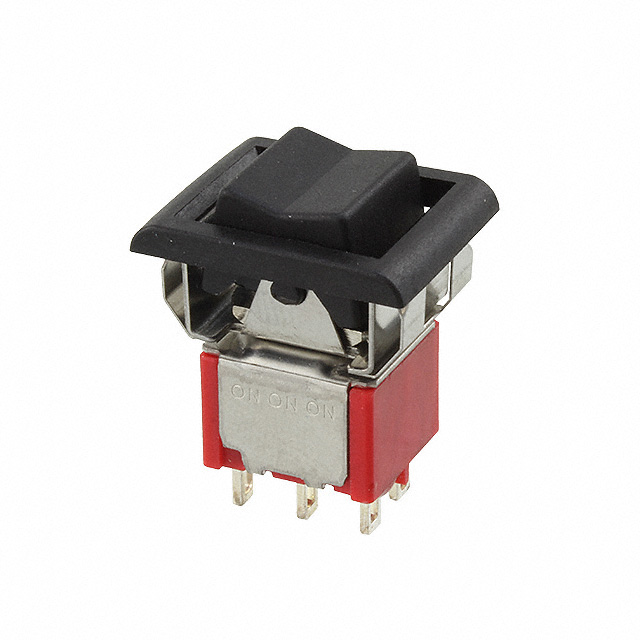

TE Connectivity AMP Connectors 4-1571987-3
Image shown is a representation only
Manufacturer
Manufacturer No
4-1571987-3
Packaging
Bulk
Description
SWITCH ROCKER SP3T 5A 120V
Detailed Description
Rocker Switch SP3T 5A (AC/DC) 120 V Panel Mount, Snap-In
DataSheet
Mfr
TE Connectivity AMP Connectors
Series
A
Circuit
SP3T
Features
Jumper needed to achieve triple throw
Packaging
Bulk
Part Status
Obsolete
Actuator Type
Concave (Standard V)
Mounting Type
Panel Mount, Snap-In
Electrical Life
6,000 Cycles
Switch Function
On-On-On
Actuator Marking
No Marking
Termination Style
Solder Lug
Base Product Number
1571987
Voltage Rating - AC
120 V
Voltage Rating - DC
28 V
Color - Actuator/Cap
Black
Current Rating (Amps)
5A (AC/DC)
Operating Temperature
-30°C ~ 85°C
Panel Cutout Dimensions
Rectangular - 15.75mm x 12.70mm
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Series | A |
| Circuit | SP3T |
| Features | Jumper needed to achieve triple throw |
| Packaging | Bulk |
| Part Status | Obsolete |
| Actuator Type | Concave (Standard V) |
| Mounting Type | Panel Mount, Snap-In |
| Electrical Life | 6,000 Cycles |
| Switch Function | On-On-On |
| Actuator Marking | No Marking |
| Termination Style | Solder Lug |
| Base Product Number | 1571987 |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 5A (AC/DC) |
| Operating Temperature | -30°C ~ 85°C |
| Panel Cutout Dimensions | Rectangular - 15.75mm x 12.70mm |
