Step1: Product
TE Connectivity AMP Connectors 3615A1R0K

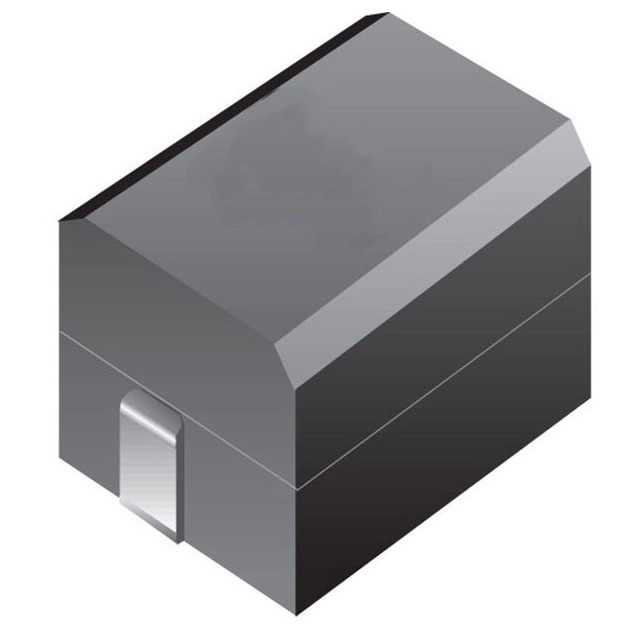

Image shown is a representation only
Manufacturer
Manufacturer No
3615A1R0K
Quantity
5
Availability
In Stock
Package
Nonstandard
Packaging
Tape & Reel (TR)
Description
3615A-10-3513-10 1.0UH
Detailed Description
1 µH Unshielded Wirewound Inductor 960 mA 250mOhm Max Nonstandard
DataSheet
Mfr
TE Connectivity AMP Connectors
Type
Wirewound
Series
3615, Sigma Inductors
Q @ Freq
50 @ 25MHz
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±10%
Inductance
1 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
Nonstandard
Material - Core
Phenolic
Size / Dimension
0.512" L x 0.197" W (13.00mm x 5.00mm)
DC Resistance (DCR)
250mOhm Max
Current Rating (Amps)
960 mA
Height - Seated (Max)
0.209" (5.30mm)
Operating Temperature
-55°C ~ 100°C
Frequency - Self Resonant
200MHz
Inductance Frequency - Test
25 MHz
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Type | Wirewound |
| Series | 3615, Sigma Inductors |
| Q @ Freq | 50 @ 25MHz |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Inductance | 1 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Phenolic |
| Size / Dimension | 0.512" L x 0.197" W (13.00mm x 5.00mm) |
| DC Resistance (DCR) | 250mOhm Max |
| Current Rating (Amps) | 960 mA |
| Height - Seated (Max) | 0.209" (5.30mm) |
| Operating Temperature | -55°C ~ 100°C |
| Frequency - Self Resonant | 200MHz |
| Inductance Frequency - Test | 25 MHz |
