Step1: Product

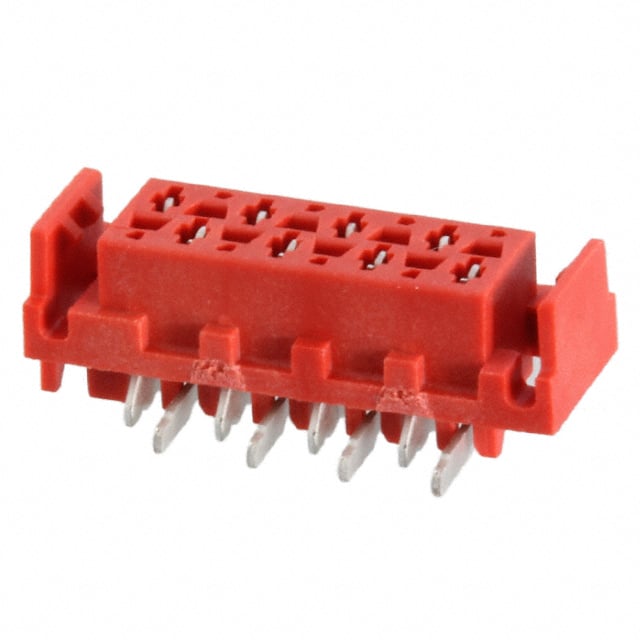

TE Connectivity AMP Connectors 338069-8
Image shown is a representation only
Manufacturer
Manufacturer No
338069-8
Quantity
3
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN RCPT 8POS 0.1 TIN SMD
Detailed Description
8 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Tin
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Board or Cable
Series
Micro-MaTch
Packaging
Tape & Reel (TR); Cut Tape (CT)
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose
Contact Type
Forked
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Friction Lock
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
100VDC
Contact Material
Phosphor Bronze
Insulation Color
Red
Insulation Height
0.209" (5.30mm)
Base Product Number
338069
Insulation Material
Polyamide (PA46), Nylon 4/6, Glass Filled
Number of Positions
8
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board or Cable |
| Series | Micro-MaTch |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact Type | Forked |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Friction Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 100VDC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Red |
| Insulation Height | 0.209" (5.30mm) |
| Base Product Number | 338069 |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Number of Positions | 8 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
