Step1: Product

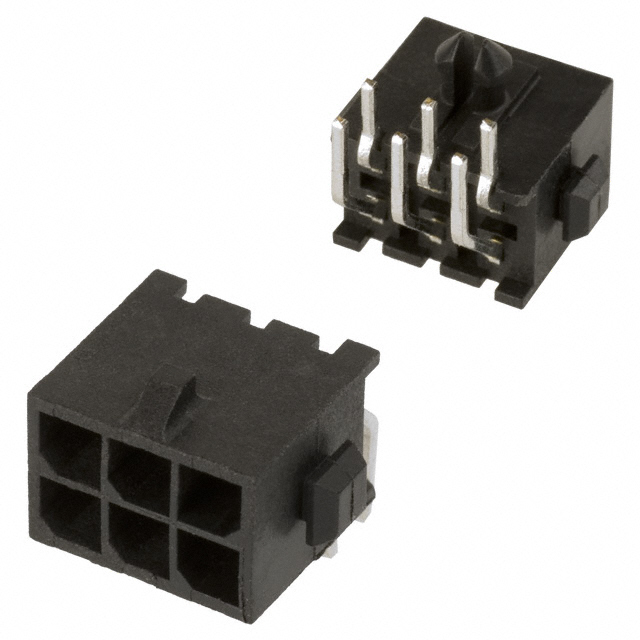

TE Connectivity AMP Connectors 3-794618-6
Image shown is a representation only
Manufacturer
Manufacturer No
3-794618-6
Quantity
3160
Availability
In Stock
Packaging
Tray
Description
CONN HEADER R/A 6POS 3MM
Detailed Description
Connector Header Through Hole, Right Angle 6 position 0.118" (3.00mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Micro MATE-N-LOK
Features
Board Lock
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
2
Pitch - Mating
0.118" (3.00mm)
Voltage Rating
250V
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.290" (7.37mm)
Base Product Number
794618
Insulation Material
Polyamide (PA), Nylon
Number of Positions
6
Row Spacing - Mating
0.118" (3.00mm)
Contact Finish - Post
Tin
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
100.0µin (2.54µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Micro MATE-N-LOK |
| Features | Board Lock |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 2 |
| Pitch - Mating | 0.118" (3.00mm) |
| Voltage Rating | 250V |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.290" (7.37mm) |
| Base Product Number | 794618 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 6 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
