Step1: Product

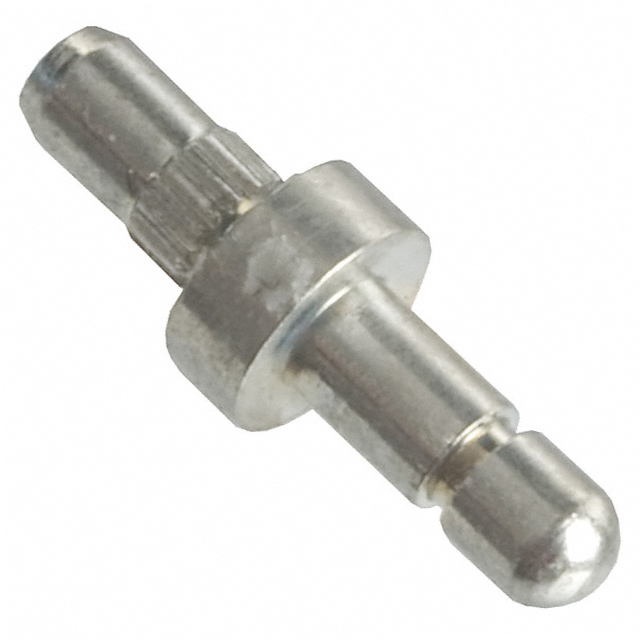

TE Connectivity AMP Connectors 3-60753-2
Image shown is a representation only
Manufacturer
Manufacturer No
3-60753-2
Quantity
50
Availability
In Stock
Packaging
Box
Description
CONN PC PIN CIRC 0.058DIA TIN
Detailed Description
Single Post Terminal Connector Through Hole Tin 0.058" (1.47mm) Dia
DataSheet
Packaging
Box
Insulation
Non-Insulated
Part Status
Active
Termination
Press-Fit, Knurled
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Through Hole
Terminal Type
Single Post
Contact Finish
Tin
Terminal Style
Flanged, Pin Retention
Board Thickness
0.125" (3.18mm)
Flange Diameter
0.110" (2.79mm)
Contact Material
Brass
Length - Overall
0.385" (9.78mm)
Base Product Number
60753
Length - Above Flange
0.155" (3.94mm)
Length - Below Flange
0.185" (4.70mm)
Mounting Hole Diameter
0.059" ~ 0.062" (1.50mm ~ 1.57mm)
Pin Size - Above Flange
0.058" (1.47mm) Dia
Pin Size - Below Flange
0.067" (1.70mm) Dia
Contact Finish Thickness
15.0µin (0.38µm)
| Attribute | Value |
|---|---|
| Packaging | Box |
| Insulation | Non-Insulated |
| Part Status | Active |
| Termination | Press-Fit, Knurled |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Through Hole |
| Terminal Type | Single Post |
| Contact Finish | Tin |
| Terminal Style | Flanged, Pin Retention |
| Board Thickness | 0.125" (3.18mm) |
| Flange Diameter | 0.110" (2.79mm) |
| Contact Material | Brass |
| Length - Overall | 0.385" (9.78mm) |
| Base Product Number | 60753 |
| Length - Above Flange | 0.155" (3.94mm) |
| Length - Below Flange | 0.185" (4.70mm) |
| Mounting Hole Diameter | 0.059" ~ 0.062" (1.50mm ~ 1.57mm) |
| Pin Size - Above Flange | 0.058" (1.47mm) Dia |
| Pin Size - Below Flange | 0.067" (1.70mm) Dia |
| Contact Finish Thickness | 15.0µin (0.38µm) |
