Step1: Product

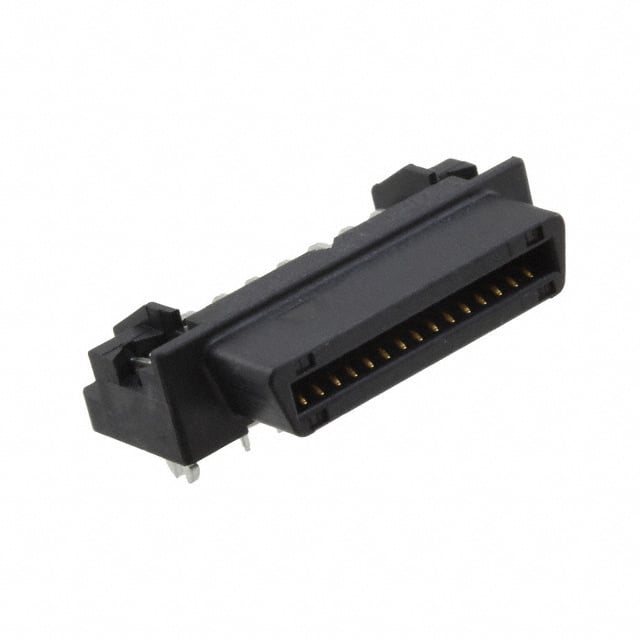

TE Connectivity AMP Connectors 3-5175474-3
Image shown is a representation only
Manufacturer
Manufacturer No
3-5175474-3
Packaging
Box
Description
CONN BTB HD RCPT 30POS R/A SLDR
Detailed Description
30 Position Receptacle Connector Board to Board, High Density Through Hole, Right Angle Solder
DataSheet
Type
Board to Board, High Density
Series
CHAMP .050 I
Features
Board Lock
Packaging
Box
Part Status
Active
Termination
Solder
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle
Contact Finish
Gold
Number of Rows
2
Connector Style
Outer Shroud Contacts
Base Product Number
5175474
Number of Positions
30
Contact Finish Thickness
20.0µin (0.51µm)
| Attribute | Value |
|---|---|
| Type | Board to Board, High Density |
| Series | CHAMP .050 I |
| Features | Board Lock |
| Packaging | Box |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Number of Rows | 2 |
| Connector Style | Outer Shroud Contacts |
| Base Product Number | 5175474 |
| Number of Positions | 30 |
| Contact Finish Thickness | 20.0µin (0.51µm) |
