Step1: Product

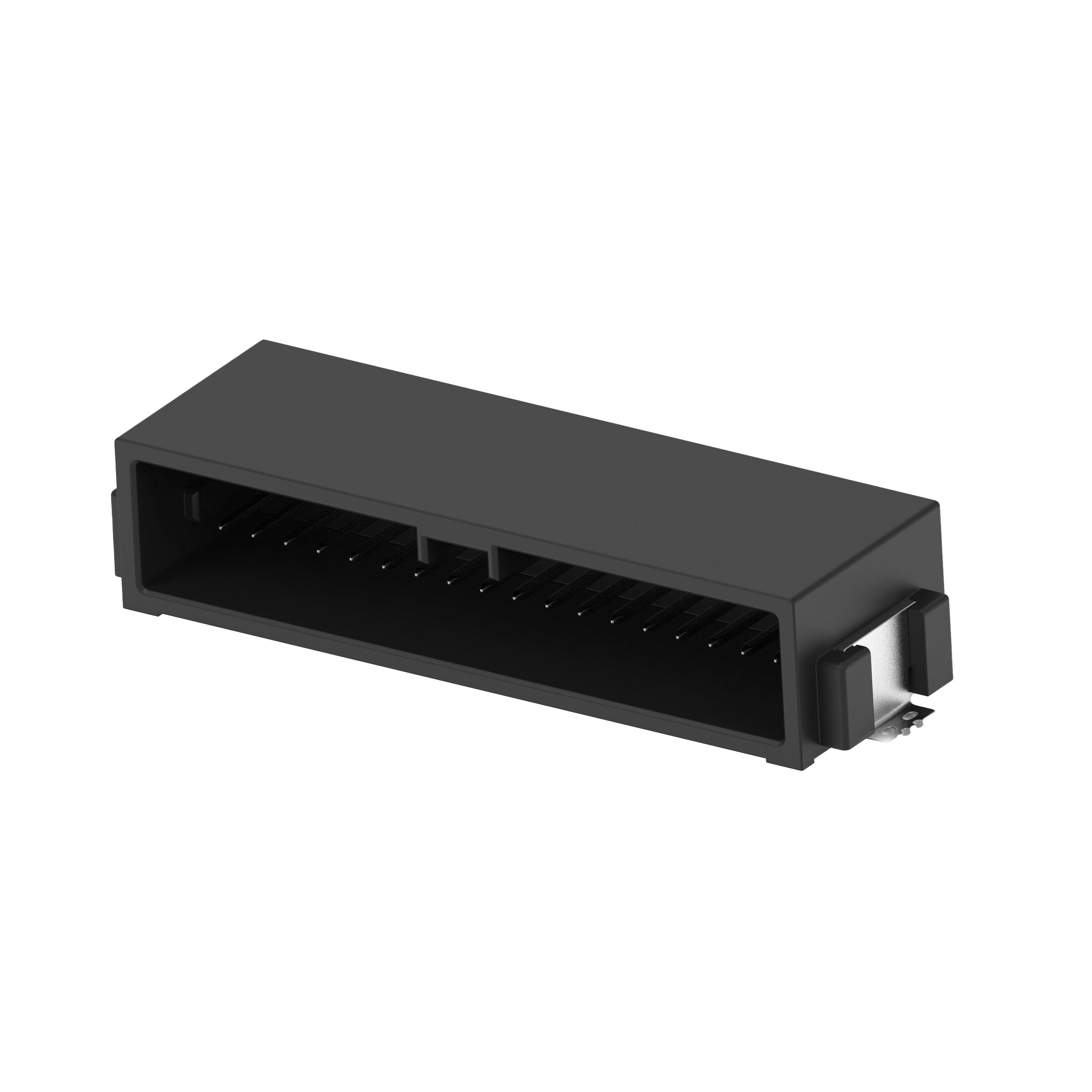

TE Connectivity AMP Connectors 3-2834499-2
Image shown is a representation only
Manufacturer
Manufacturer No
3-2834499-2
Quantity
500
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MINI DYNAMIC HDR H 32P TIN Y-KEY
Detailed Description
Connector Header Surface Mount, Right Angle 36 position 0.071" (1.80mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Mini Dynamic
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.071" (1.80mm)
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.340" (8.64mm)
Base Product Number
2834499
Insulation Material
Thermoplastic
Number of Positions
36
Contact Finish - Post
Tin
Contact Length - Post
0.098" (2.50mm)
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 125°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Mini Dynamic |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.071" (1.80mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.340" (8.64mm) |
| Base Product Number | 2834499 |
| Insulation Material | Thermoplastic |
| Number of Positions | 36 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.098" (2.50mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 125°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
