TE Connectivity AMP Connectors 3-1971906-5

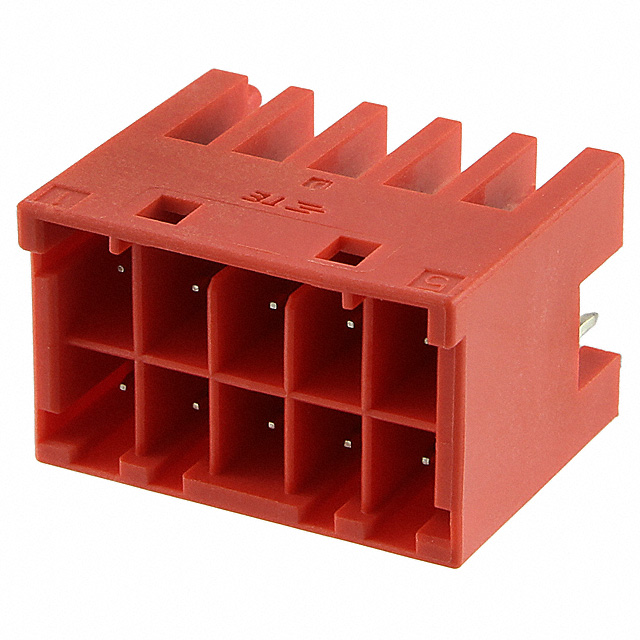

Image shown is a representation only
Manufacturer
Manufacturer No
3-1971906-5
Packaging
Tray
Description
CONN HEADER VERT 10POS 3.3MM
Detailed Description
Connector Header Through Hole 10 position 0.130" (3.30mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Grace Inertia, GIC
Features
Board Guide
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Kinked Pin, Solder
Applications
General Purpose, Industrial
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.130" (3.30mm)
Voltage Rating
250VAC
Contact Material
Brass
Insulation Color
Red
Insulation Height
0.561" (14.25mm)
Base Product Number
1971906
Insulation Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Number of Positions
10
Row Spacing - Mating
0.205" (5.20mm)
Contact Finish - Post
Tin
Contact Length - Post
0.118" (3.00mm)
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-30°C ~ 105°C
Overall Contact Length
0.575" (14.60mm)
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Grace Inertia, GIC |
| Features | Board Guide |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose, Industrial |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.130" (3.30mm) |
| Voltage Rating | 250VAC |
| Contact Material | Brass |
| Insulation Color | Red |
| Insulation Height | 0.561" (14.25mm) |
| Base Product Number | 1971906 |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Number of Positions | 10 |
| Row Spacing - Mating | 0.205" (5.20mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.118" (3.00mm) |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -30°C ~ 105°C |
| Overall Contact Length | 0.575" (14.60mm) |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
