Step1: Product

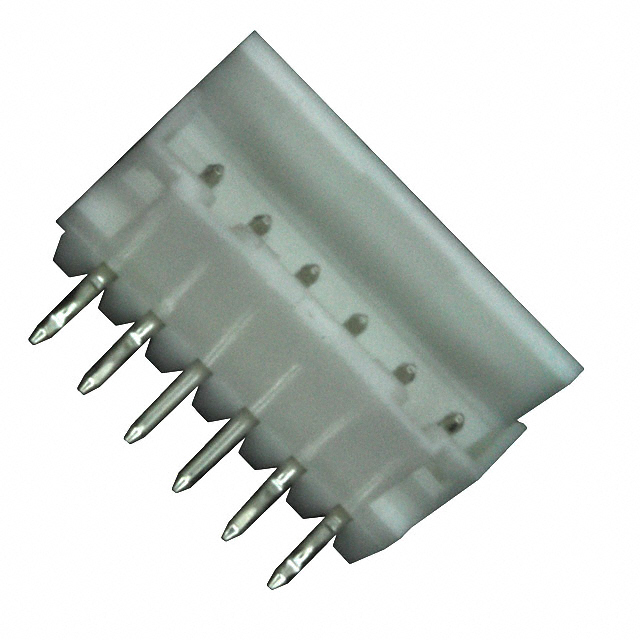

TE Connectivity AMP Connectors 292250-6
Image shown is a representation only
Manufacturer
Manufacturer No
292250-6
Quantity
3195
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER R/A 6POS 2MM
Detailed Description
Connector Header Through Hole, Right Angle 6 position 0.079" (2.00mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
CT
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Kinked Pin, Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
125VAC
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.228" (5.80mm)
Base Product Number
292250
Insulation Material
Polyamide (PA66), Nylon 6/6
Number of Positions
6
Contact Finish - Post
Tin
Contact Length - Post
0.126" (3.20mm)
Current Rating (Amps)
Varies by Wire Gauge
Contact Finish - Mating
Tin
Contact Length - Mating
0.165" (4.20mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | CT |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 125VAC |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.228" (5.80mm) |
| Base Product Number | 292250 |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Number of Positions | 6 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.126" (3.20mm) |
| Current Rating (Amps) | Varies by Wire Gauge |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.165" (4.20mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
