Step1: Product

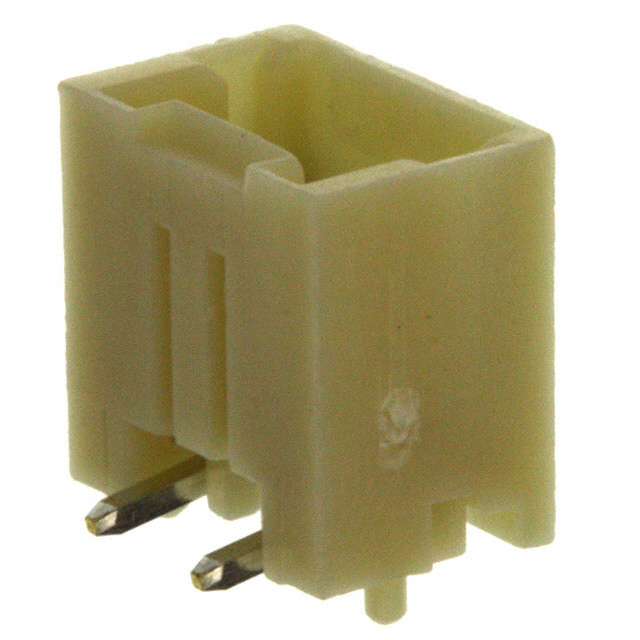

TE Connectivity AMP Connectors 292230-3
Image shown is a representation only
Manufacturer
Manufacturer No
292230-3
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN HEADER SMD 3POS 1.5MM
Detailed Description
Connector Header Surface Mount 3 position 0.059" (1.50mm)
Datasheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Mini CT
Features
Board Guide
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
1
Pitch - Mating
0.059" (1.50mm)
Voltage Rating
50VAC
Contact Material
Brass
Insulation Color
Beige
Insulation Height
0.272" (6.91mm)
Base Product Number
292230
Insulation Material
Polyamide (PA), Nylon, Glass Filled
Number of Positions
3
Contact Finish - Post
Tin
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-30°C ~ 105°C
Contact Finish - Mating
Tin
Contact Length - Mating
0.094" (2.40mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Mini CT |
| Features | Board Guide |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.059" (1.50mm) |
| Voltage Rating | 50VAC |
| Contact Material | Brass |
| Insulation Color | Beige |
| Insulation Height | 0.272" (6.91mm) |
| Base Product Number | 292230 |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Number of Positions | 3 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -30°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.094" (2.40mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
