Step1: Product

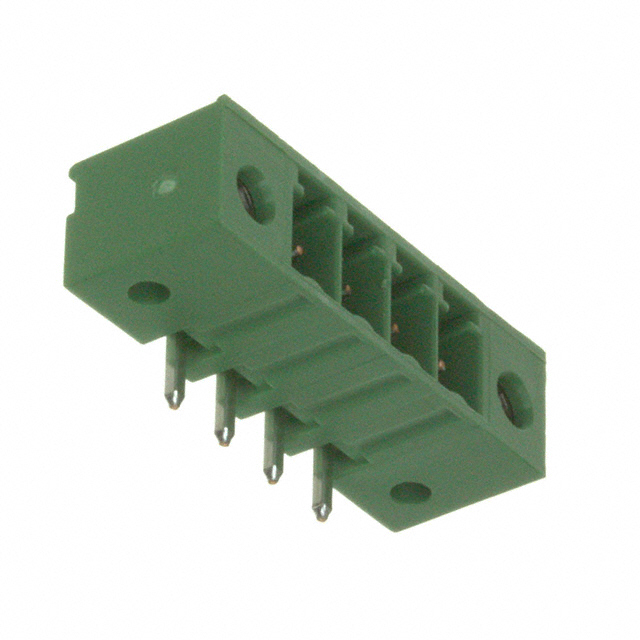

TE Connectivity AMP Connectors 284541-4
Image shown is a representation only
Manufacturer
Manufacturer No
284541-4
Packaging
Box
Description
TERM BLOCK HDR 4POS 3.81MM
Detailed Description
4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole
DataSheet
Type
Header, Male Pins, Shrouded (4 Side)
Color
Green
Pitch
0.150" (3.81mm)
Series
Buchanan
Features
Mating Flange
Packaging
Box
Part Status
Discontinued at DigiKey
Current - UL
11 A
Manufacturer
TE Connectivity AMP Connectors
Voltage - UL
300 V
Mounting Type
Through Hole
Contact Material
Phosphor Bronze
Housing Material
Polyamide (PA66), Nylon 6/6
Number of Levels
1
Insulation Height
0.285" (7.25mm)
Termination Style
Solder
Header Orientation
90°, Right Angle
Base Product Number
284541
Contact Tail Length
0.134" (3.40mm)
Number of Positions
4
Positions Per Level
4
Contact Mating Finish
Tin
Operating Temperature
-40°C ~ 110°C
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Color | Green |
| Pitch | 0.150" (3.81mm) |
| Series | Buchanan |
| Features | Mating Flange |
| Packaging | Box |
| Part Status | Discontinued at DigiKey |
| Current - UL | 11 A |
| Manufacturer | TE Connectivity AMP Connectors |
| Voltage - UL | 300 V |
| Mounting Type | Through Hole |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Insulation Height | 0.285" (7.25mm) |
| Termination Style | Solder |
| Header Orientation | 90°, Right Angle |
| Base Product Number | 284541 |
| Contact Tail Length | 0.134" (3.40mm) |
| Number of Positions | 4 |
| Positions Per Level | 4 |
| Contact Mating Finish | Tin |
| Operating Temperature | -40°C ~ 110°C |
| Material Flammability Rating | UL94 V-0 |
