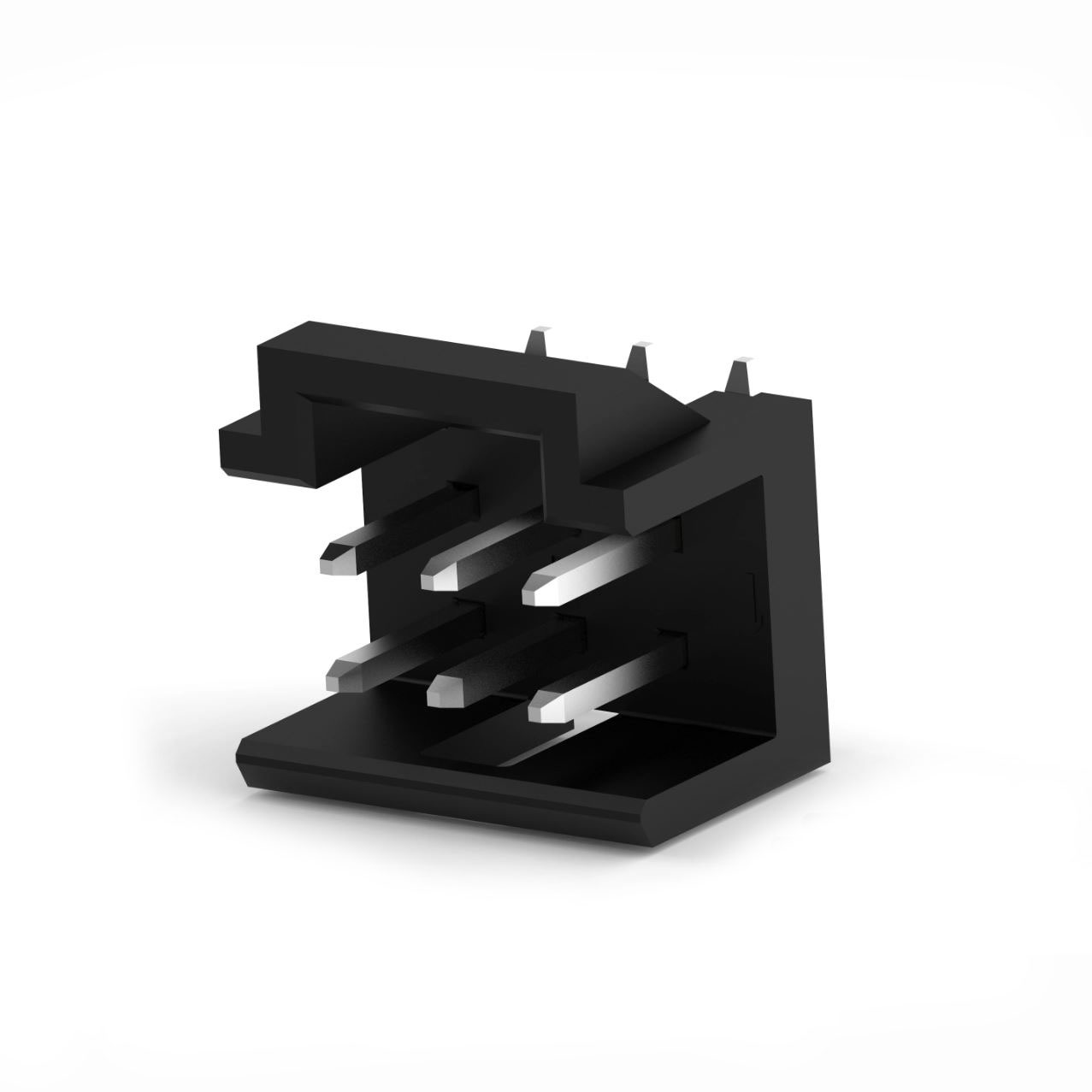

TE Connectivity AMP Connectors 2823235-8
Image shown is a representation only
Manufacturer
Manufacturer No
2823235-8
Packaging
Bulk
Description
8P,2MM,PL HDR,DRVT,SMD,SN,TR W/C
Detailed Description
Connector Header Surface Mount 8 position 0.079" (2.00mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Board or Cable
Series
AMPMODU 2MM
Features
Pick and Place
Packaging
Bulk
Shrouding
Shrouded - 2 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
125VAC/DC
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.217" (5.51mm)
Base Product Number
2823235
Insulation Material
Thermoplastic
Number of Positions
8
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish - Post
Tin
Current Rating (Amps)
2A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Contact Length - Mating
0.157" (4.00mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
12.0µin (0.30µm)
Contact Finish Thickness - Mating
118.1µin (3.00µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board or Cable |
| Series | AMPMODU 2MM |
| Features | Pick and Place |
| Packaging | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 125VAC/DC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.217" (5.51mm) |
| Base Product Number | 2823235 |
| Insulation Material | Thermoplastic |
| Number of Positions | 8 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 2A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.157" (4.00mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 12.0µin (0.30µm) |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
