Step1: Product

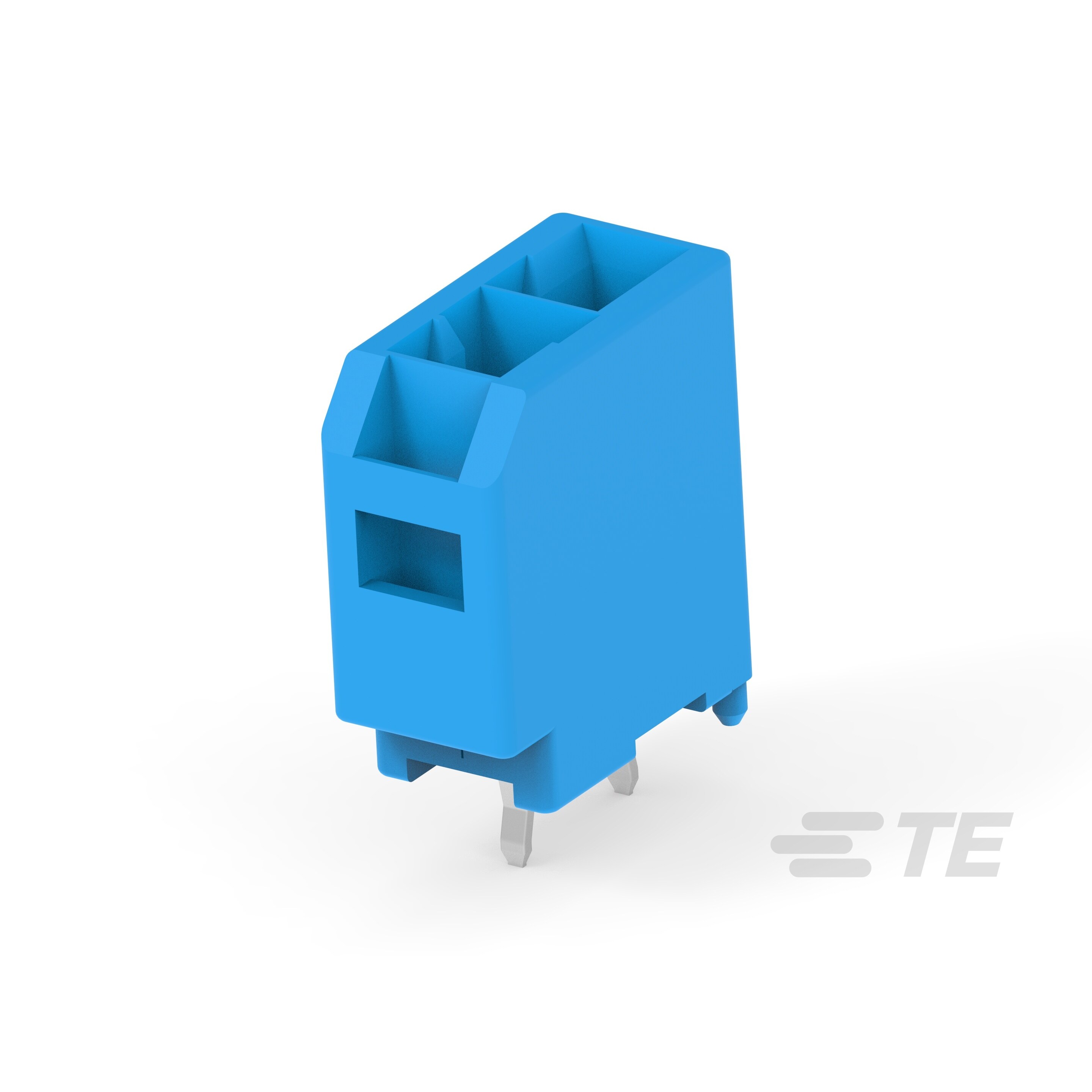

TE Connectivity AMP Connectors 2499173-2
Image shown is a representation only
Manufacturer
Manufacturer No
2499173-2
Packaging
Tube
Description
QP 6.5 HDR ASSY, 2P, BLUE, TUBE
Detailed Description
Connector Header Through Hole 2 position
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
QP 6.5
Features
Board Guide
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Kinked Pin, Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Rectangular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Voltage Rating
600VAC/DC
Contact Material
Copper Alloy
Insulation Color
Blue
Insulation Height
0.776" (19.70mm)
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
2
Row Spacing - Mating
0.177" (4.50mm)
Contact Finish - Post
Tin
Contact Length - Post
0.150" (3.81mm)
Current Rating (Amps)
10A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Contact Length - Mating
0.348" (8.85mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
50.0µin (1.27µm)
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | QP 6.5 |
| Features | Board Guide |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Voltage Rating | 600VAC/DC |
| Contact Material | Copper Alloy |
| Insulation Color | Blue |
| Insulation Height | 0.776" (19.70mm) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 2 |
| Row Spacing - Mating | 0.177" (4.50mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.150" (3.81mm) |
| Current Rating (Amps) | 10A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.348" (8.85mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 50.0µin (1.27µm) |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
