Step1: Product

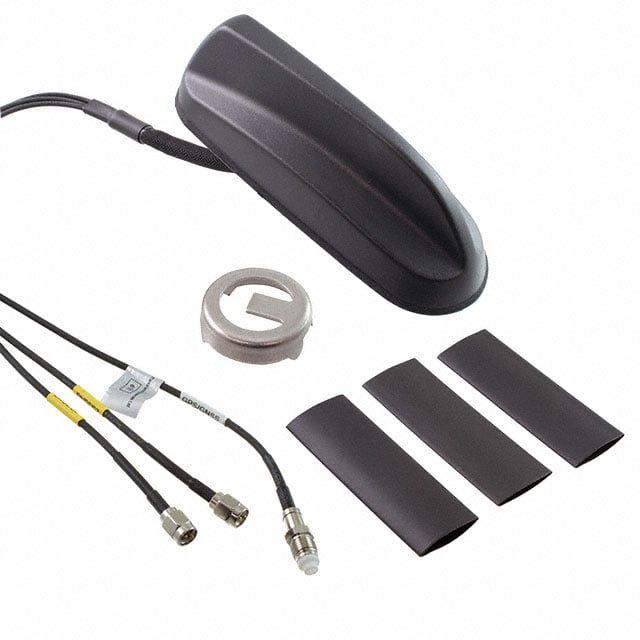

TE Connectivity AMP Connectors 2332157-2
Image shown is a representation only
Manufacturer
Manufacturer No
2332157-2
Packaging
Bag
Description
MULTI FUNCTION MIMO ANTENNA 2G/3
Detailed Description
RF ANTENNA 2G, 3G, 4G, Beidou, Galileo, GNSS, GPS, WLAN Dome FME, SMA Panel Mount
DataSheet
Gain
2dBi, 5dBi
VSWR
2
Features
Cable - 300mm, LNA
Packaging
Bag
Part Status
Obsolete
Power - Max
25 W
Termination
FME, SMA
Antenna Type
Dome
Applications
2G, 3G, 4G, Beidou, Galileo, GNSS, GPS, WLAN
Height (Max)
1.969" (50.00mm)
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Panel Mount
Frequency Group
Wide Band
Frequency Range
698MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 3.8GHz
Number of Bands
4
Ingress Protection
IP66
RF Family/Standard
Cellular, Navigation
Base Product Number
2332157
Frequency (Center/Band)
829MHz, 1.587GHz, 1.94GHz, 3.15GHz
| Attribute | Value |
|---|---|
| Gain | 2dBi, 5dBi |
| VSWR | 2 |
| Features | Cable - 300mm, LNA |
| Packaging | Bag |
| Part Status | Obsolete |
| Power - Max | 25 W |
| Termination | FME, SMA |
| Antenna Type | Dome |
| Applications | 2G, 3G, 4G, Beidou, Galileo, GNSS, GPS, WLAN |
| Height (Max) | 1.969" (50.00mm) |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Panel Mount |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz ~ 960MHz, 1.562GHz ~ 1.612GHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 3.8GHz |
| Number of Bands | 4 |
| Ingress Protection | IP66 |
| RF Family/Standard | Cellular, Navigation |
| Base Product Number | 2332157 |
| Frequency (Center/Band) | 829MHz, 1.587GHz, 1.94GHz, 3.15GHz |
