Step1: Product

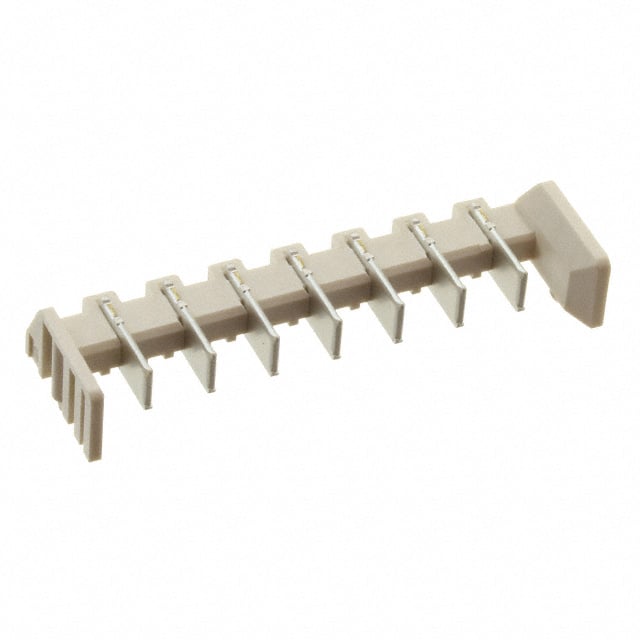

TE Connectivity AMP Connectors 2318770-7
Image shown is a representation only
Manufacturer
Manufacturer No
2318770-7
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TERM BLOCK HDR 7POS 5MM
Detailed Description
7 Position Terminal Block Header, Blade Pins 0.197" (5.00mm) 90°, Right Angle Surface Mount
Datasheet
Type
Header, Blade Pins
Color
Natural
Pitch
0.197" (5.00mm)
Series
WireMate, Buchanan
Features
Board Guide
Packaging
Tape & Reel (TR); Cut Tape (CT)
Manufacturer
TE Connectivity AMP Connectors
Voltage - UL
250 V
Mounting Type
Surface Mount
Contact Material
Copper Alloy
Housing Material
Liquid Crystal Polymer (LCP), Glass Filled
Number of Levels
1
Insulation Height
0.252" (6.40mm)
Termination Style
Solder
Header Orientation
90°, Right Angle
Base Product Number
2318770
Number of Positions
7
Positions Per Level
7
Contact Mating Finish
Tin
Operating Temperature
-40°C ~ 85°C
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Header, Blade Pins |
| Color | Natural |
| Pitch | 0.197" (5.00mm) |
| Series | WireMate, Buchanan |
| Features | Board Guide |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Manufacturer | TE Connectivity AMP Connectors |
| Voltage - UL | 250 V |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Number of Levels | 1 |
| Insulation Height | 0.252" (6.40mm) |
| Termination Style | Solder |
| Header Orientation | 90°, Right Angle |
| Base Product Number | 2318770 |
| Number of Positions | 7 |
| Positions Per Level | 7 |
| Contact Mating Finish | Tin |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
