Step1: Product

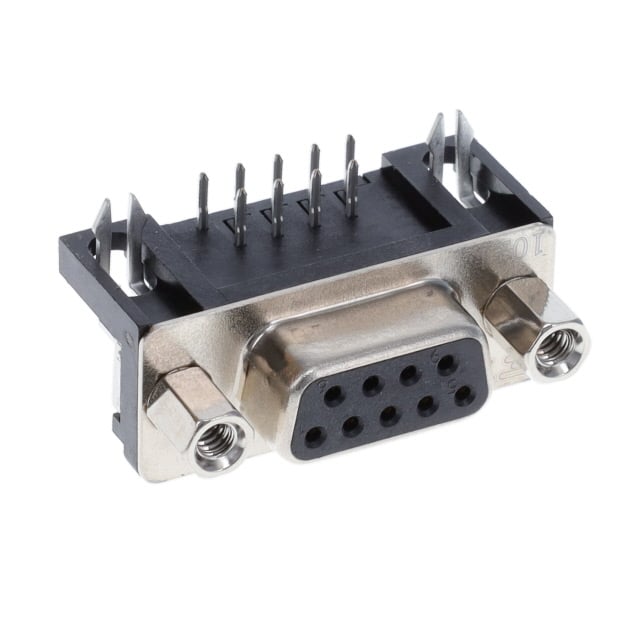

TE Connectivity AMP Connectors 2311765-1
Image shown is a representation only
Manufacturer
Manufacturer No
2311765-1
Quantity
459
Availability
In Stock
Packaging
Tray
Description
CONN D-SUB RCPT 9POS R/A SOLDER
Detailed Description
9 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
Mfr
TE Connectivity AMP Connectors
Color
Black
Series
AMPLIMITE HD-20
Features
Board Lock
Packaging
Tray
Termination
Solder
Contact Type
Signal
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Mating Side, Female Screwlock (4-40)
Number of Rows
2
Backset Spacing
0.318" (8.08mm)
Connector Style
D-Sub
Contact Material
Copper Alloy
Base Product Number
2311765
Dielectric Material
Polyamide (PA9T), Nylon 9T, Glass Filled
Number of Positions
9
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 105°C
Shell Material, Finish
Steel, Nickel Plated
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
1 (DE, E)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Color | Black |
| Series | AMPLIMITE HD-20 |
| Features | Board Lock |
| Packaging | Tray |
| Termination | Solder |
| Contact Type | Signal |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Number of Rows | 2 |
| Backset Spacing | 0.318" (8.08mm) |
| Connector Style | D-Sub |
| Contact Material | Copper Alloy |
| Base Product Number | 2311765 |
| Dielectric Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Number of Positions | 9 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 105°C |
| Shell Material, Finish | Steel, Nickel Plated |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 1 (DE, E) |
