Step1: Product

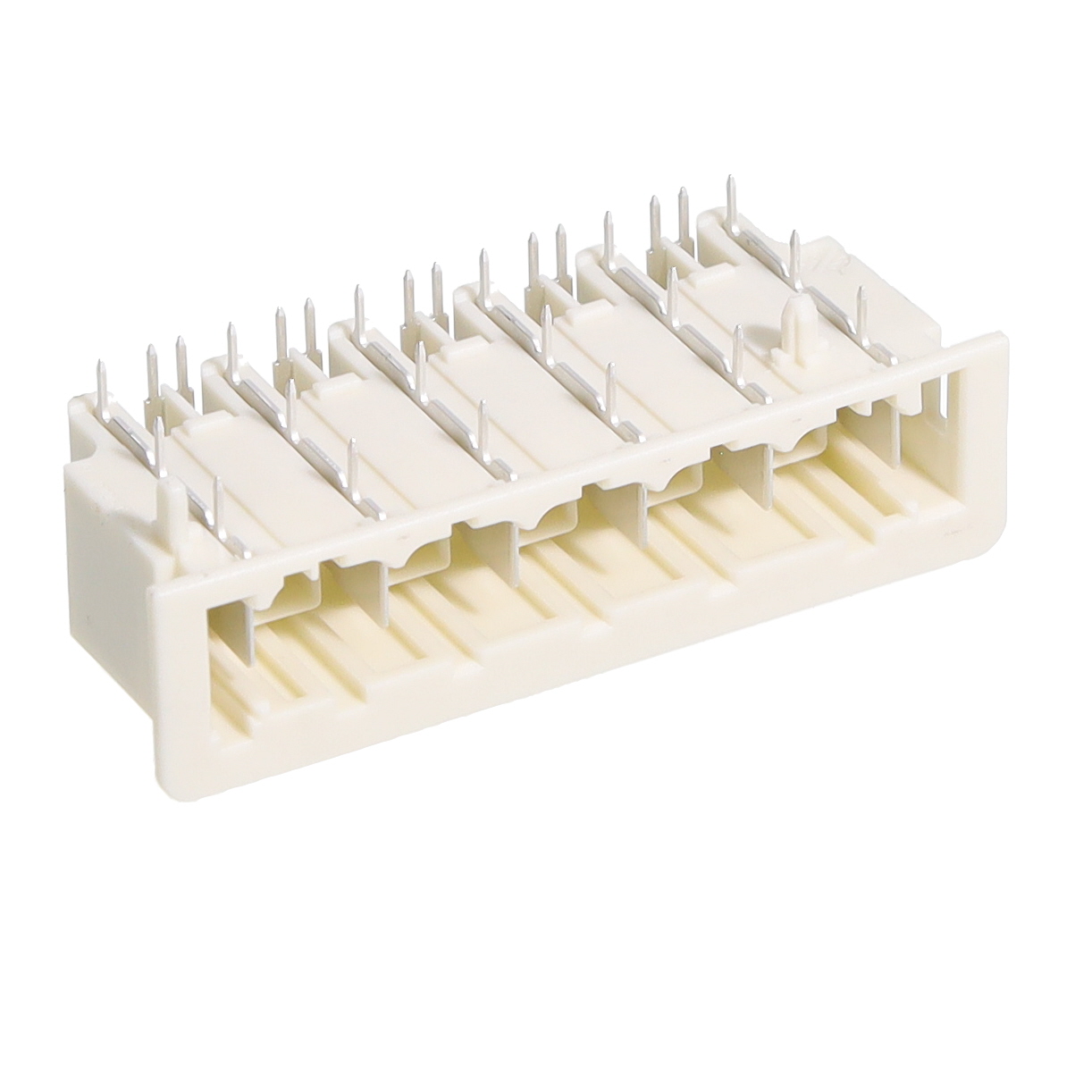

TE Connectivity AMP Connectors 2305390-2
Image shown is a representation only
Manufacturer
Manufacturer No
2305390-2
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
5-PORT MATENET HDR ASSY 90DEG, C
Detailed Description
Connector Header Through Hole, Right Angle 10 position
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
MATEnet
Features
Board Guide
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Tab
Contact Shape
Rectangular
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Voltage Rating
60VDC
Contact Material
Copper Alloy
Insulation Color
White
Insulation Height
0.531" (13.50mm)
Base Product Number
2305390
Insulation Material
Polyamide (PA4T), Nylon 4T, Glass Filled
Number of Positions
10
Contact Length - Post
0.094" (2.40mm)
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | MATEnet |
| Features | Board Guide |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Voltage Rating | 60VDC |
| Contact Material | Copper Alloy |
| Insulation Color | White |
| Insulation Height | 0.531" (13.50mm) |
| Base Product Number | 2305390 |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled |
| Number of Positions | 10 |
| Contact Length - Post | 0.094" (2.40mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
