TE Connectivity AMP Connectors 2291173-1

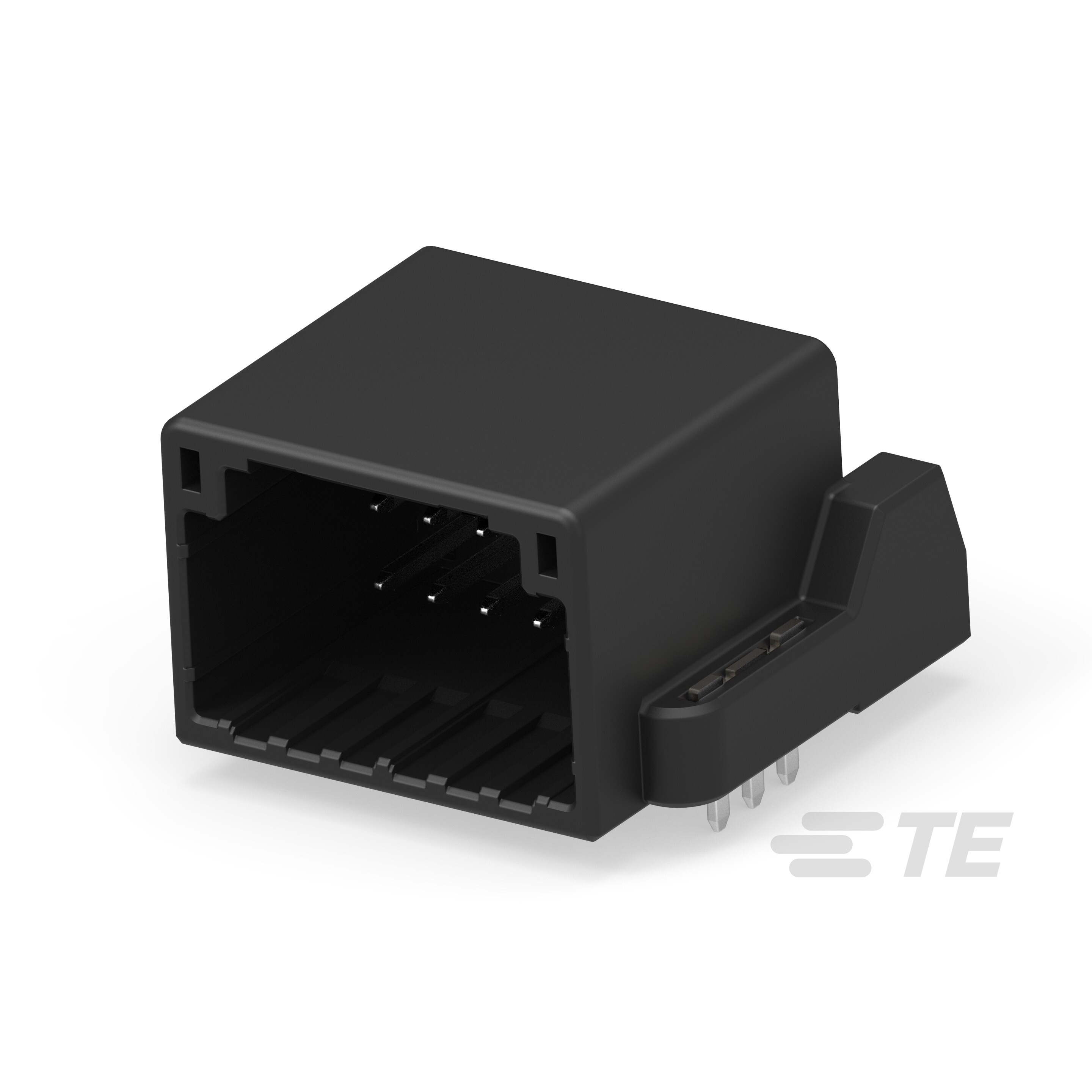

Image shown is a representation only
Manufacturer
Manufacturer No
2291173-1
Packaging
Tape & Reel (TR)
Description
025 SMD 12P CAP ASSEMBLY H-TYPE
Detailed Description
Connector Header Surface Mount, Right Angle 12 position 0.087" (2.20mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
.025
Features
Solder Retention
Packaging
Tape & Reel (TR)
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Tab
Contact Shape
Rectangular
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.087" (2.20mm)
Voltage Rating
12VDC
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.500" (12.70mm)
Base Product Number
2291173
Insulation Material
Polyphenylene Sulfide (PPS)
Number of Positions
12
Row Spacing - Mating
0.118" (3.00mm)
Contact Finish - Post
Tin
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Contact Length - Mating
0.217" (5.50mm)
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | .025 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR) |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.087" (2.20mm) |
| Voltage Rating | 12VDC |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.500" (12.70mm) |
| Base Product Number | 2291173 |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Number of Positions | 12 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Contact Finish - Post | Tin |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.217" (5.50mm) |
| Number of Positions Loaded | All |
