Step1: Product

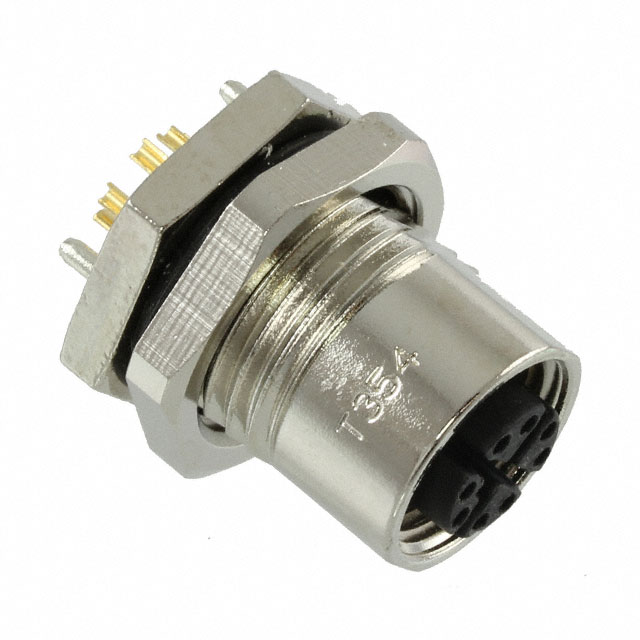

TE Connectivity AMP Connectors 2271195-1
Image shown is a representation only
Manufacturer
Manufacturer No
2271195-1
Packaging
Tray
Description
CONN RCPT FMALE 8POS SOLDER CUP
Detailed Description
8 Position Circular Connector Receptacle, Female Sockets Solder Cup
DataSheet
Mfr
TE Connectivity AMP Connectors
Color
Silver
Series
M12
Features
Board Guide
Packaging
Tray
Shielding
Shielded
Orientation
X
Part Status
Active
Termination
Solder Cup
Applications
Automotive, Industrial
Shell Finish
Nickel
Mounting Type
Panel Mount
Connector Type
Receptacle, Female Sockets
Fastening Type
Threaded
Shell Material
Zinc Aluminum Alloy
Voltage Rating
48V
Mounting Feature
Bulkhead - Front Side Nut
Primary Material
Metal
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
2271195
Number of Positions
8
Shell Size - Insert
M12-8
Current Rating (Amps)
0.5A
Operating Temperature
-40°C ~ 70°C
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
19.7µin (0.50µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Color | Silver |
| Series | M12 |
| Features | Board Guide |
| Packaging | Tray |
| Shielding | Shielded |
| Orientation | X |
| Part Status | Active |
| Termination | Solder Cup |
| Applications | Automotive, Industrial |
| Shell Finish | Nickel |
| Mounting Type | Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Zinc Aluminum Alloy |
| Voltage Rating | 48V |
| Mounting Feature | Bulkhead - Front Side Nut |
| Primary Material | Metal |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | 2271195 |
| Number of Positions | 8 |
| Shell Size - Insert | M12-8 |
| Current Rating (Amps) | 0.5A |
| Operating Temperature | -40°C ~ 70°C |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 19.7µin (0.50µm) |
