Step1: Product

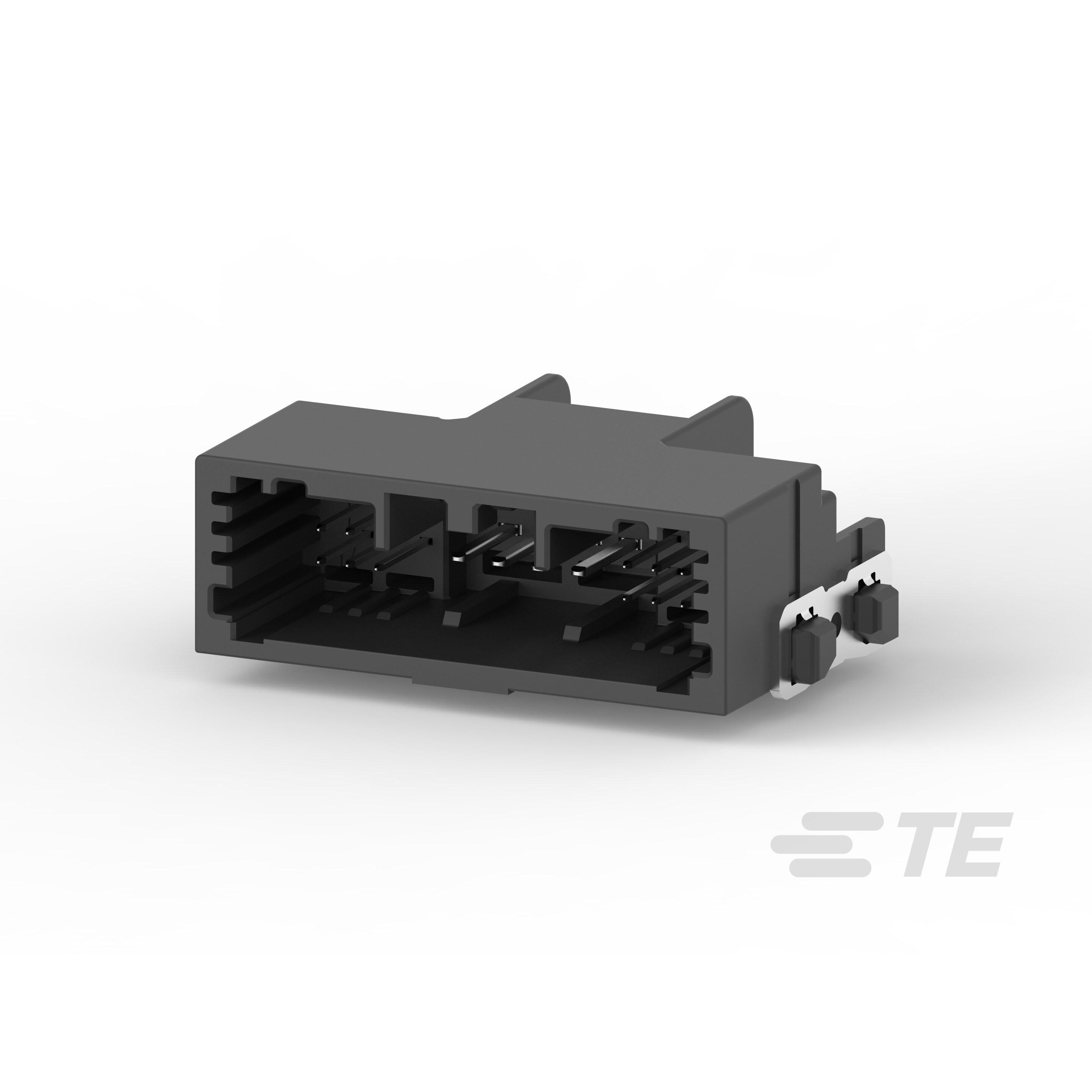

TE Connectivity AMP Connectors 2203881-1
Image shown is a representation only
Manufacturer
Manufacturer No
2203881-1
Packaging
Tube
Description
16POS,HYBRID,HEADER ASSY,90 DEG,
Detailed Description
Connector Header Surface Mount, Right Angle 16 position 0.071" (1.80mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Generation 50
Features
Board Guide, Solder Retention
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
General Purpose
Contact Type
Tab
Contact Shape
Rectangular
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
2
Pitch - Mating
0.071" (1.80mm)
Contact Material
Brass
Insulation Color
Black
Base Product Number
2203881
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT)
Number of Positions
16
Row Spacing - Mating
0.071" (1.80mm)
Contact Finish - Post
Tin
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Contact Finish Thickness - Post
12.0µin (0.30µm)
Contact Finish Thickness - Mating
31.5µin (0.80µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Generation 50 |
| Features | Board Guide, Solder Retention |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.071" (1.80mm) |
| Contact Material | Brass |
| Insulation Color | Black |
| Base Product Number | 2203881 |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Number of Positions | 16 |
| Row Spacing - Mating | 0.071" (1.80mm) |
| Contact Finish - Post | Tin |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Post | 12.0µin (0.30µm) |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) |
