Step1: Product

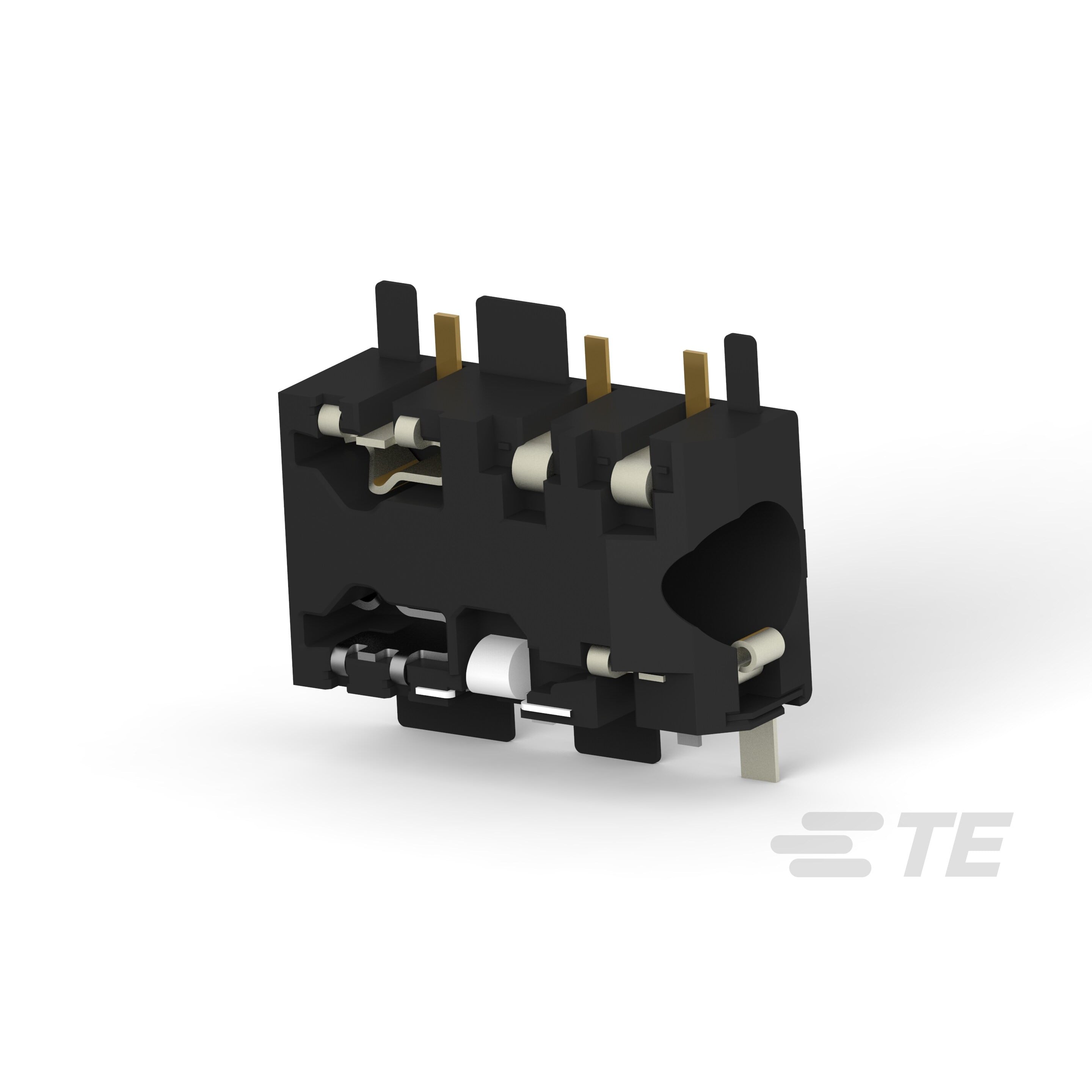

TE Connectivity AMP Connectors 2199088-2
Image shown is a representation only
Manufacturer
Manufacturer No
2199088-2
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
3.5MM MID-MOUNT AUDIO JACK
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
DataSheet
Mfr
TE Connectivity AMP Connectors
Gender
Female
Packaging
Tape & Reel (TR); Cut Tape (CT)
Body Color
Black
Part Status
Obsolete
Termination
Solder
Signal Lines
Stereo (4 Conductor, TRRS)
Mounting Type
Surface Mount, Right Angle
Connector Type
Phone Jack
Actual Diameter
0.142" (3.60mm)
Contact Material
Copper Alloy
Housing Material
Thermoplastic
Internal Switch(s)
Single Switch
Base Product Number
2199088
Contact Material - Plating
Copper Alloy
Number of Positions/Contacts
4 Conductors, 6 Contacts
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Gender | Female |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Body Color | Black |
| Part Status | Obsolete |
| Termination | Solder |
| Signal Lines | Stereo (4 Conductor, TRRS) |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Phone Jack |
| Actual Diameter | 0.142" (3.60mm) |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Internal Switch(s) | Single Switch |
| Base Product Number | 2199088 |
| Contact Material - Plating | Copper Alloy |
| Number of Positions/Contacts | 4 Conductors, 6 Contacts |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
