Step1: Product

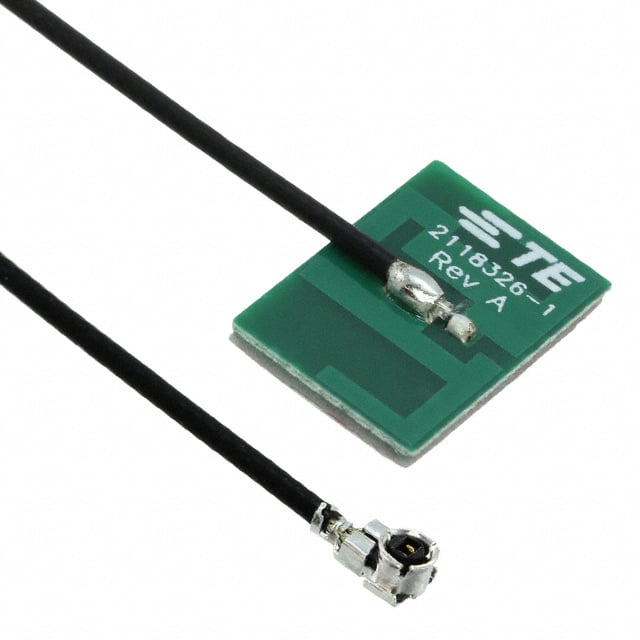

TE Connectivity AMP Connectors 2118326-1
Image shown is a representation only
Manufacturer
Manufacturer No
2118326-1
Packaging
Bag
Description
RF ANT 5GHZ PCB TRACE U.FL ADH
Detailed Description
RF ANTENNA Wi-Fi, WLAN PCB Trace U.FL (UMCC), I-PEX MHF1 Adhesive
DataSheet
Gain
2.4dBi
VSWR
2.5
Features
Cable - 120mm
Packaging
Bag
Part Status
Active
Power - Max
3 W
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
PCB Trace
Applications
Wi-Fi, WLAN
Height (Max)
0.039" (1.00mm)
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Adhesive
Frequency Group
SHF (f > 4GHz)
Frequency Range
4.9GHz ~ 5.875GHz
Number of Bands
1
RF Family/Standard
WiFi
Base Product Number
211832
Frequency (Center/Band)
5GHz
| Attribute | Value |
|---|---|
| Gain | 2.4dBi |
| VSWR | 2.5 |
| Features | Cable - 120mm |
| Packaging | Bag |
| Part Status | Active |
| Power - Max | 3 W |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | PCB Trace |
| Applications | Wi-Fi, WLAN |
| Height (Max) | 0.039" (1.00mm) |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Adhesive |
| Frequency Group | SHF (f > 4GHz) |
| Frequency Range | 4.9GHz ~ 5.875GHz |
| Number of Bands | 1 |
| RF Family/Standard | WiFi |
| Base Product Number | 211832 |
| Frequency (Center/Band) | 5GHz |
