Step1: Product

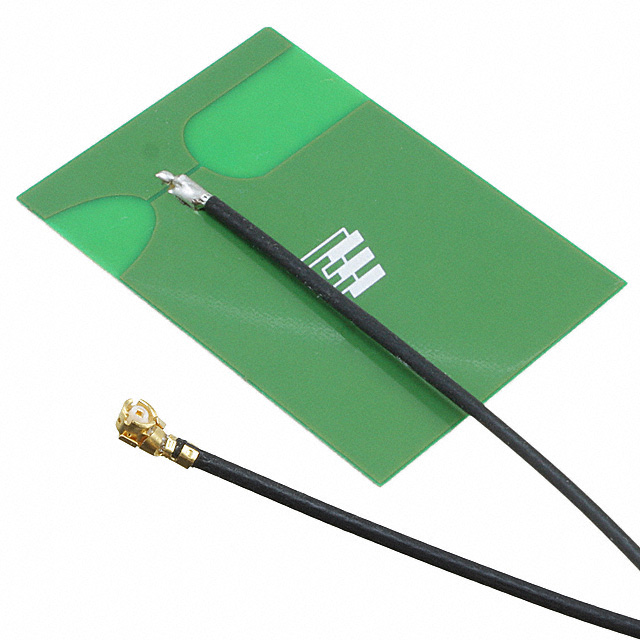

TE Connectivity AMP Connectors 2118060-1
Image shown is a representation only
Manufacturer
Manufacturer No
2118060-1
Packaging
Bulk
Description
RF ANT 3.1/5.5GHZ FLT U.FL 350MM
Detailed Description
RF ANTENNA Bluetooth, WLAN, Zigbee™ Flat Patch U.FL (UMCC), I-PEX MHF1 Adhesive
DataSheet
Gain
2dBi
VSWR
3
Packaging
Bulk
Part Status
Active
Power - Max
3 W
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
Flat Patch
Applications
Bluetooth, WLAN, Zigbee™
Height (Max)
0.012" (0.30mm)
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Adhesive
Frequency Group
Wide Band
Frequency Range
2.3GHz ~ 3.8GHz, 5.15GHz ~ 5.875GHz
Number of Bands
2
RF Family/Standard
802.15.4, Bluetooth, WiFi
Base Product Number
211806
Frequency (Center/Band)
3.1GHz, 5.5GHz
| Attribute | Value |
|---|---|
| Gain | 2dBi |
| VSWR | 3 |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 3 W |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | Flat Patch |
| Applications | Bluetooth, WLAN, Zigbee™ |
| Height (Max) | 0.012" (0.30mm) |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Adhesive |
| Frequency Group | Wide Band |
| Frequency Range | 2.3GHz ~ 3.8GHz, 5.15GHz ~ 5.875GHz |
| Number of Bands | 2 |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Base Product Number | 211806 |
| Frequency (Center/Band) | 3.1GHz, 5.5GHz |
