Step1: Product

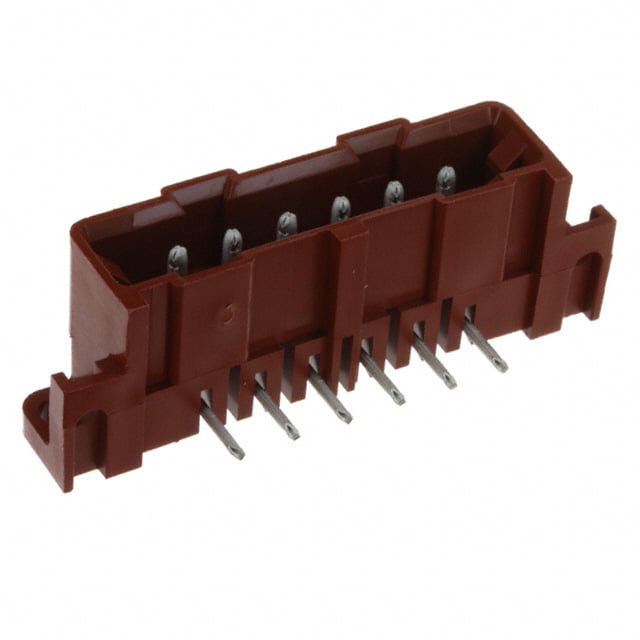

TE Connectivity AMP Connectors 207378-6
Image shown is a representation only
Manufacturer
Manufacturer No
207378-6
Quantity
20
Availability
In Stock
Packaging
Tube
Description
CONN HEADER R/A 6POS 5MM
Detailed Description
Connector Header Through Hole, Right Angle 6 position 0.197" (5.00mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Board or Cable
Series
Metrimate
Features
Mounting Flange
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Industrial
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.197" (5.00mm)
Voltage Rating
600V
Contact Material
Brass
Insulation Color
Red
Insulation Height
0.500" (12.70mm)
Base Product Number
207378
Insulation Material
Polyamide (PA), Nylon
Number of Positions
6
Contact Finish - Post
Tin
Contact Length - Post
0.192" (4.88mm)
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 130°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
150.0µin (3.81µm)
Contact Finish Thickness - Mating
150.0µin (3.81µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board or Cable |
| Series | Metrimate |
| Features | Mounting Flange |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.197" (5.00mm) |
| Voltage Rating | 600V |
| Contact Material | Brass |
| Insulation Color | Red |
| Insulation Height | 0.500" (12.70mm) |
| Base Product Number | 207378 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 6 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.192" (4.88mm) |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 130°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
