Step1: Product

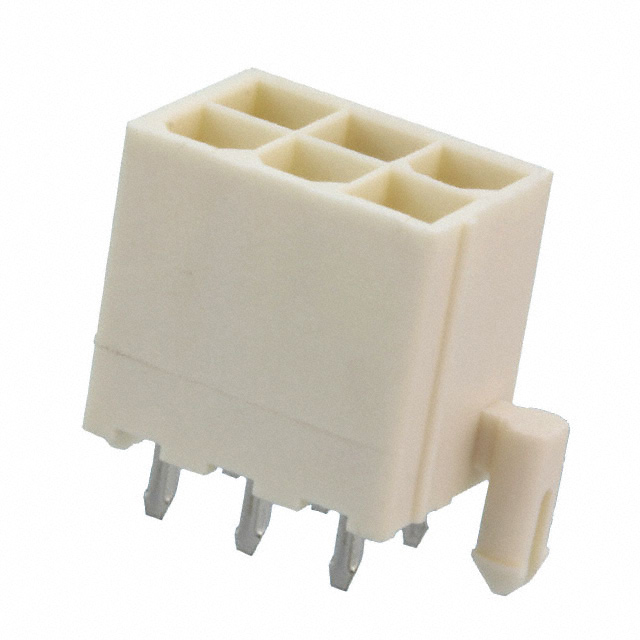

TE Connectivity AMP Connectors 2029265-6
Image shown is a representation only
Manufacturer
Manufacturer No
2029265-6
Packaging
Tray
Description
CONN HEADER VERT 6POS 4.2MM
Detailed Description
Connector Header Through Hole 6 position 0.165" (4.20mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
VAL-U-LOK
Features
Board Lock, Glow Wire Compliant
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
General Purpose, Industrial, Lighting
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
2
Pitch - Mating
0.165" (4.20mm)
Voltage Rating
600VAC
Contact Material
Brass
Insulation Color
White
Insulation Height
0.504" (12.80mm)
Base Product Number
2029265
Insulation Material
Polyamide (PA), Nylon
Number of Positions
6
Row Spacing - Mating
0.165" (4.20mm)
Contact Finish - Post
Tin
Contact Length - Post
0.138" (3.50mm)
Current Rating (Amps)
9A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | VAL-U-LOK |
| Features | Board Lock, Glow Wire Compliant |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 2 |
| Pitch - Mating | 0.165" (4.20mm) |
| Voltage Rating | 600VAC |
| Contact Material | Brass |
| Insulation Color | White |
| Insulation Height | 0.504" (12.80mm) |
| Base Product Number | 2029265 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 6 |
| Row Spacing - Mating | 0.165" (4.20mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.138" (3.50mm) |
| Current Rating (Amps) | 9A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
