Step1: Product

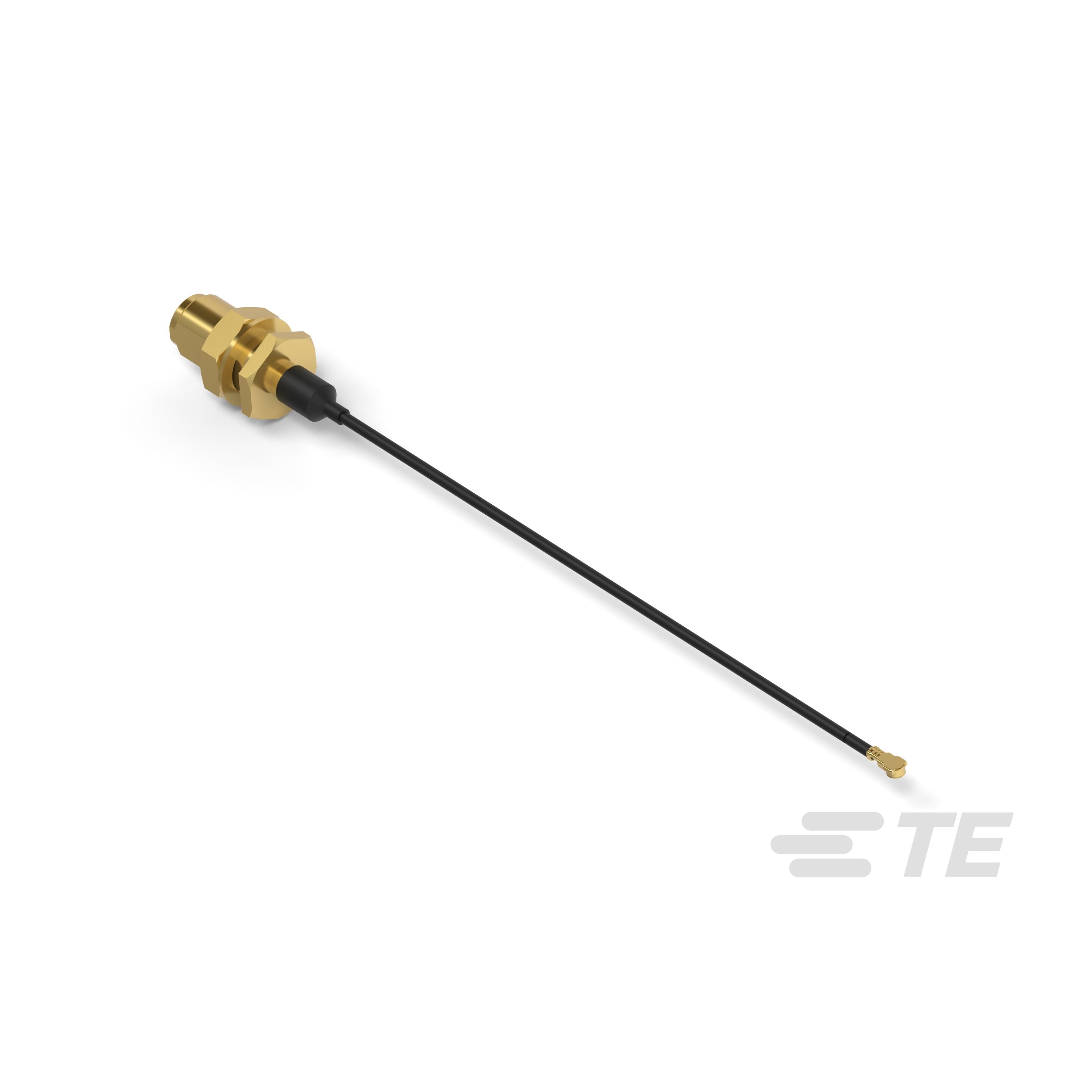

TE Connectivity AMP Connectors 2016694-3
Image shown is a representation only
Manufacturer
Manufacturer No
2016694-3
Packaging
Box
Description
RF CA,SMA BK TO UMCC GEN4,WITH1.
Detailed Description
Cable Assembly Coaxial U.FL (UMCC) to SMA 1.13mm OD Coaxial Cable 5.906" (150.00mm)
DataSheet
Color
Black
Style
U.FL (UMCC) to SMA
Length
5.906" (150.00mm)
Packaging
Box
Cable Type
1.13mm OD Coaxial Cable
Part Status
Active
Manufacturer
TE Connectivity AMP Connectors
1st Connector
U.FL (UMCC) Plug, Right Angle
2nd Connector
SMA Jack
Cable Impedance
50 Ohms
Frequency - Max
9 GHz
Overall Impedance
50 Ohms
1st Contact Gender
Male
2nd Contact Gender
Female
Base Product Number
2016694
Connector Impedance
50 Ohms
Operating Temperature
-45°C ~ 85°C
1st Connector Mounting Type
Panel Mount
2nd Connector Mounting Type
Free Hanging (In-Line)
1st Connector Mounting Feature
Bulkhead - Front Side Nut
| Attribute | Value |
|---|---|
| Color | Black |
| Style | U.FL (UMCC) to SMA |
| Length | 5.906" (150.00mm) |
| Packaging | Box |
| Cable Type | 1.13mm OD Coaxial Cable |
| Part Status | Active |
| Manufacturer | TE Connectivity AMP Connectors |
| 1st Connector | U.FL (UMCC) Plug, Right Angle |
| 2nd Connector | SMA Jack |
| Cable Impedance | 50 Ohms |
| Frequency - Max | 9 GHz |
| Overall Impedance | 50 Ohms |
| 1st Contact Gender | Male |
| 2nd Contact Gender | Female |
| Base Product Number | 2016694 |
| Connector Impedance | 50 Ohms |
| Operating Temperature | -45°C ~ 85°C |
| 1st Connector Mounting Type | Panel Mount |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
