TE Connectivity AMP Connectors 2-969682-2

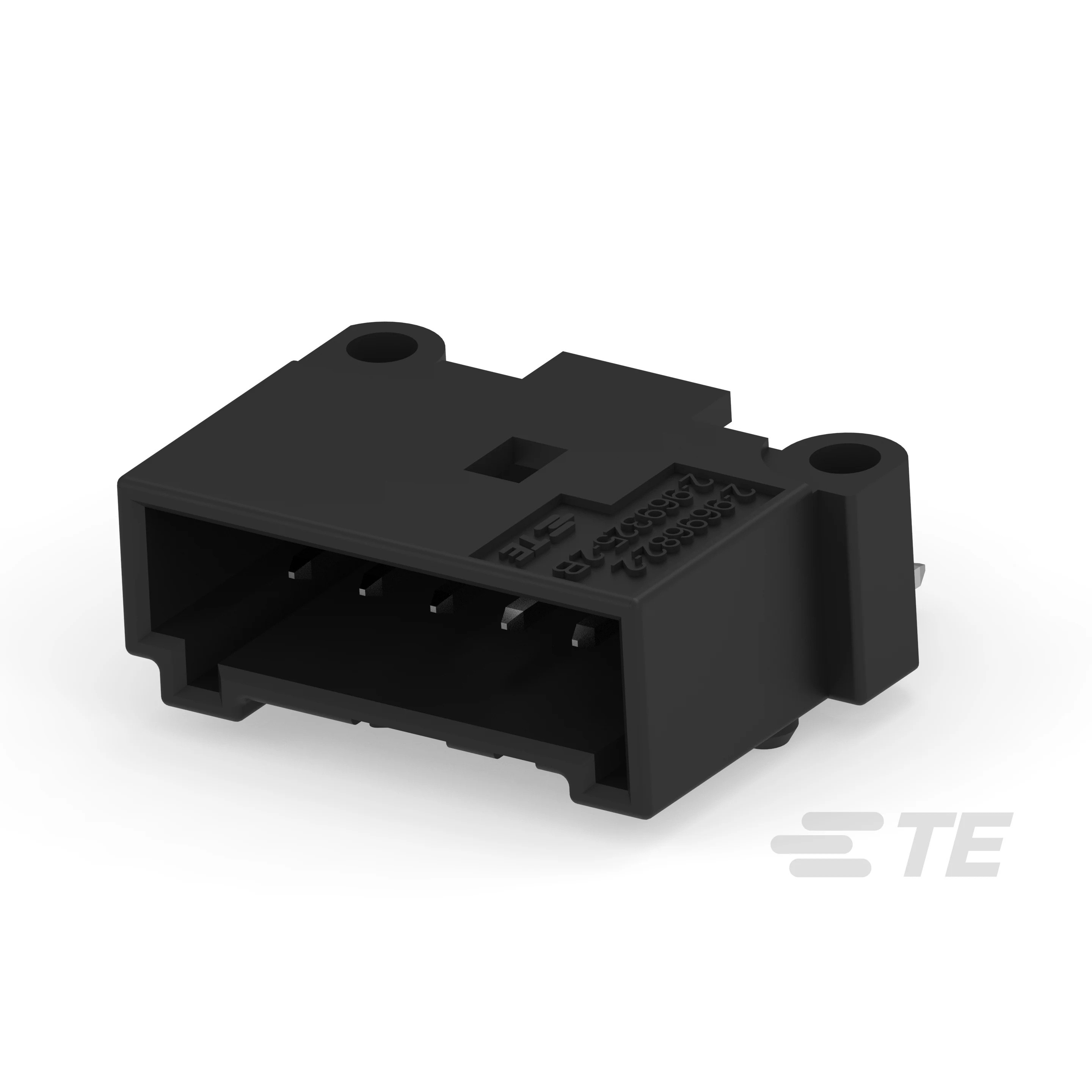

Image shown is a representation only
Manufacturer
Manufacturer No
2-969682-2
Packaging
Tape & Reel (TR)
Description
6POS MQS .63 HEADER 90DEG SMD
Detailed Description
Connector Header Surface Mount, Right Angle 6 position 0.100" (2.54mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Micro Quadlok
Features
Board Guide
Packaging
Tape & Reel (TR)
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Contact Material
Copper Alloy
Insulation Color
Natural
Insulation Height
0.287" (7.30mm)
Base Product Number
969682
Insulation Material
Polyamide (PA4T), Nylon 4T, Glass Filled
Number of Positions
6
Contact Finish - Post
Tin
Current Rating (Amps)
7.5A
Operating Temperature
-40°C ~ 120°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Contact Finish Thickness - Post
12.0µin (0.30µm)
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Micro Quadlok |
| Features | Board Guide |
| Packaging | Tape & Reel (TR) |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Insulation Height | 0.287" (7.30mm) |
| Base Product Number | 969682 |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled |
| Number of Positions | 6 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -40°C ~ 120°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Post | 12.0µin (0.30µm) |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
