Step1: Product

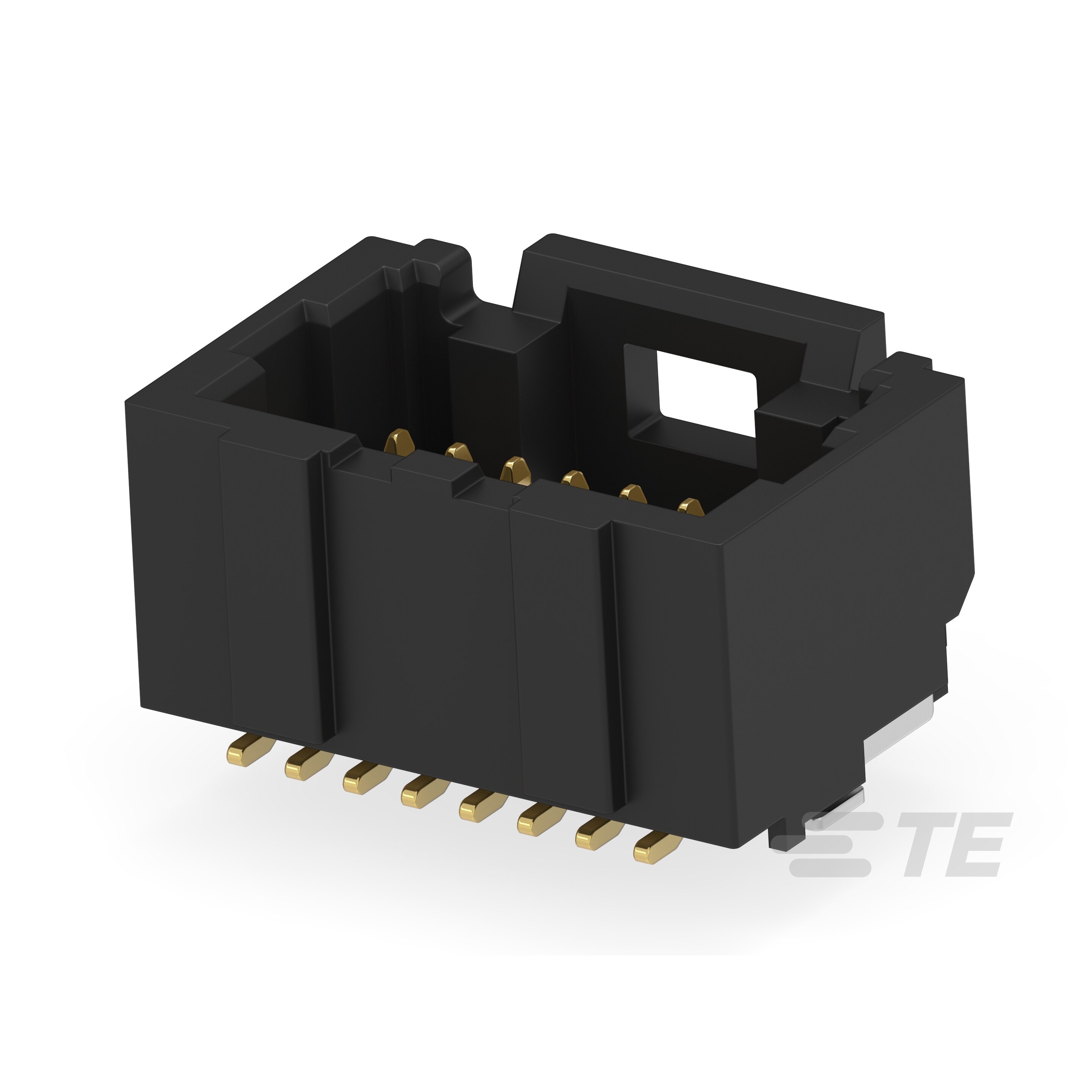

TE Connectivity AMP Connectors 2-2504449-2
Image shown is a representation only
Manufacturer
Manufacturer No
2-2504449-2
Packaging
Tape & Reel (TR)
Description
1MM 2R INT LCK HPI, HDR, 2X8P, B
Detailed Description
Connector Header Surface Mount 16 position 0.039" (1.00mm)
Datasheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
High Performance Interconnect (HPI)
Features
Pick and Place, Solder Retention
Packaging
Tape & Reel (TR)
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Rectangular
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.039" (1.00mm)
Voltage Rating
50VAC/DC
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.213" (5.40mm)
Insulation Material
Polyamide (PA9T), Nylon 9T
Number of Positions
16
Row Spacing - Mating
0.105" (2.66mm)
Contact Finish - Post
Gold
Current Rating (Amps)
0.8A (AC/DC)
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | High Performance Interconnect (HPI) |
| Features | Pick and Place, Solder Retention |
| Packaging | Tape & Reel (TR) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.039" (1.00mm) |
| Voltage Rating | 50VAC/DC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.213" (5.40mm) |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Number of Positions | 16 |
| Row Spacing - Mating | 0.105" (2.66mm) |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 0.8A (AC/DC) |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash |
