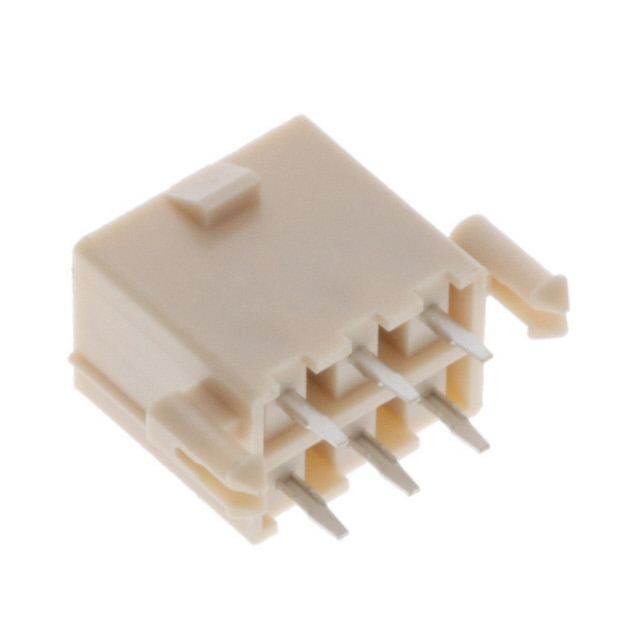

TE Connectivity AMP Connectors 2-1775099-1
Image shown is a representation only
Manufacturer
Manufacturer No
2-1775099-1
Packaging
Bulk
Description
CONN RCPT 6POS 0.165 TIN PCB
Detailed Description
Connector Header Through Hole 6 position 0.165" (4.20mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Series
ATX
Features
Board Lock
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
2
Pitch - Mating
0.165" (4.20mm)
Voltage Rating
250VAC
Contact Material
Brass
Insulation Color
Ivory
Insulation Height
0.504" (12.80mm)
Base Product Number
1775099
Insulation Material
Polyamide (PA9T), Nylon 9T
Number of Positions
6
Row Spacing - Mating
0.165" (4.20mm)
Contact Finish - Post
Tin
Contact Length - Post
0.126" (3.20mm)
Current Rating (Amps)
9A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
120.0µin (3.05µm)
Contact Finish Thickness - Mating
120.0µin (3.05µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Series | ATX |
| Features | Board Lock |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 2 |
| Pitch - Mating | 0.165" (4.20mm) |
| Voltage Rating | 250VAC |
| Contact Material | Brass |
| Insulation Color | Ivory |
| Insulation Height | 0.504" (12.80mm) |
| Base Product Number | 1775099 |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Number of Positions | 6 |
| Row Spacing - Mating | 0.165" (4.20mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.126" (3.20mm) |
| Current Rating (Amps) | 9A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 120.0µin (3.05µm) |
| Contact Finish Thickness - Mating | 120.0µin (3.05µm) |
