TE Connectivity AMP Connectors 2-1586041-0

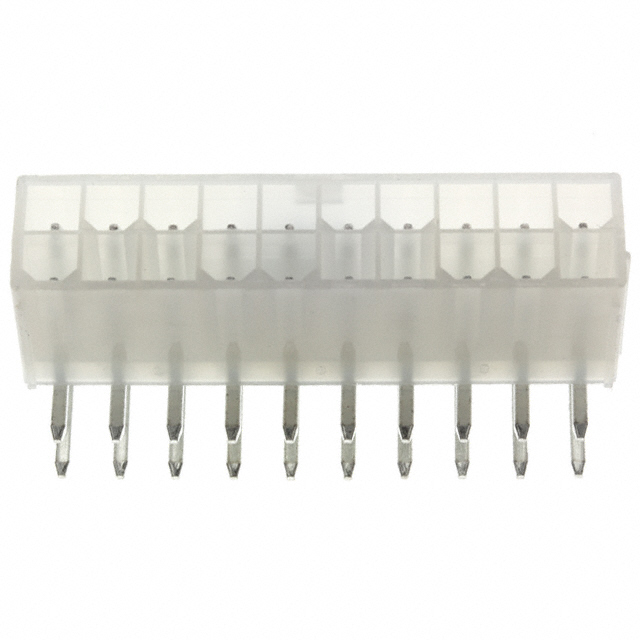

Image shown is a representation only
Manufacturer
Manufacturer No
2-1586041-0
Quantity
72
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER R/A 20POS 4.2MM
Detailed Description
Connector Header Through Hole, Right Angle 20 position 0.165" (4.20mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
VAL-U-LOK
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
General Purpose, Industrial, Lighting
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
2
Pitch - Mating
0.165" (4.20mm)
Voltage Rating
600VAC
Contact Material
Brass Alloy
Insulation Color
Natural
Insulation Height
0.402" (10.20mm)
Base Product Number
1586041
Insulation Material
Polyamide (PA), Nylon
Number of Positions
20
Row Spacing - Mating
0.165" (4.20mm)
Contact Finish - Post
Tin
Contact Length - Post
0.142" (3.60mm)
Current Rating (Amps)
9A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-2
Contact Finish Thickness - Post
80.0µin (2.03µm)
Contact Finish Thickness - Mating
80.0µin (2.03µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | VAL-U-LOK |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 2 |
| Pitch - Mating | 0.165" (4.20mm) |
| Voltage Rating | 600VAC |
| Contact Material | Brass Alloy |
| Insulation Color | Natural |
| Insulation Height | 0.402" (10.20mm) |
| Base Product Number | 1586041 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 20 |
| Row Spacing - Mating | 0.165" (4.20mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.142" (3.60mm) |
| Current Rating (Amps) | 9A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-2 |
| Contact Finish Thickness - Post | 80.0µin (2.03µm) |
| Contact Finish Thickness - Mating | 80.0µin (2.03µm) |
