Step1: Product

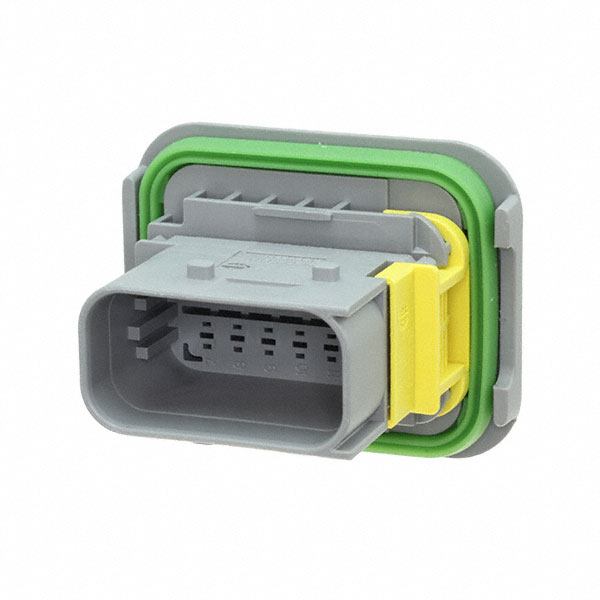

TE Connectivity AMP Connectors 2-1564520-1
Image shown is a representation only
Manufacturer
Manufacturer No
2-1564520-1
Quantity
180
Availability
In Stock
Packaging
Box
Description
CONN PLUG HSG 12POS 4.00MM
Detailed Description
12 Rectangular Connectors - Housings Plug Gray 0.157" (4.00mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Note
Contacts Sold Separately
Color
Gray
Pitch
0.157" (4.00mm)
Series
Heavy Duty Sealed Connector Series, MCP
Features
Mounting Flange, Sealed
Packaging
Box
Part Status
Active
Row Spacing
0.236" (6.00mm)
Contact Type
Tab
Mounting Type
Panel Mount
Connector Type
Plug
Fastening Type
Slide-On
Number of Rows
2
Base Product Number
1564520
Contact Termination
Crimp
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
12
Operating Temperature
-40°C ~ 140°C
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Note | Contacts Sold Separately |
| Color | Gray |
| Pitch | 0.157" (4.00mm) |
| Series | Heavy Duty Sealed Connector Series, MCP |
| Features | Mounting Flange, Sealed |
| Packaging | Box |
| Part Status | Active |
| Row Spacing | 0.236" (6.00mm) |
| Contact Type | Tab |
| Mounting Type | Panel Mount |
| Connector Type | Plug |
| Fastening Type | Slide-On |
| Number of Rows | 2 |
| Base Product Number | 1564520 |
| Contact Termination | Crimp |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 12 |
| Operating Temperature | -40°C ~ 140°C |
