Step1: Product

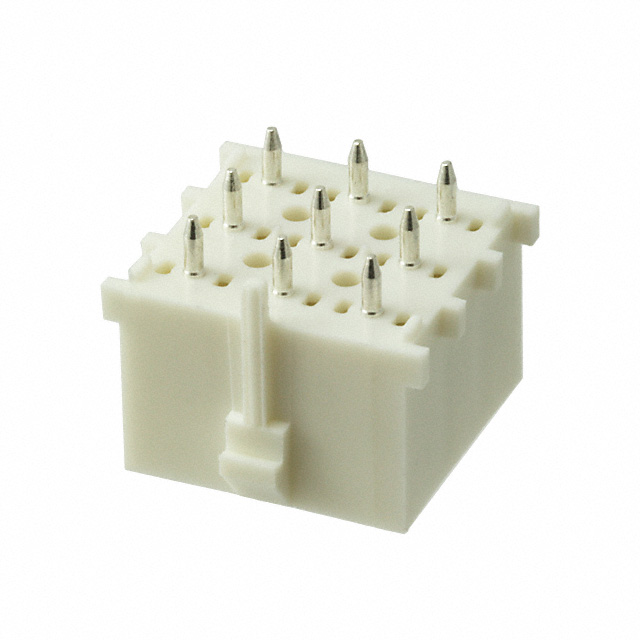

TE Connectivity AMP Connectors 194012-1
Image shown is a representation only
Manufacturer
Manufacturer No
194012-1
Packaging
Bulk
Description
CONN HEADER VERT 9POS 6.35MM
Detailed Description
Connector Header Through Hole 9 position 0.250" (6.35mm)
Datasheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
MATE-N-LOK II
Features
Board Guide
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
3
Pitch - Mating
0.250" (6.35mm)
Contact Material
Copper Alloy
Insulation Height
0.550" (13.97mm)
Base Product Number
194012
Insulation Material
Polyamide (PA), Nylon
Number of Positions
9
Row Spacing - Mating
0.250" (6.35mm)
Contact Length - Post
0.145" (3.68mm)
Operating Temperature
-55°C ~ 105°C
Contact Finish - Mating
Silver
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
200.0µin (5.08µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | MATE-N-LOK II |
| Features | Board Guide |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 3 |
| Pitch - Mating | 0.250" (6.35mm) |
| Contact Material | Copper Alloy |
| Insulation Height | 0.550" (13.97mm) |
| Base Product Number | 194012 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 9 |
| Row Spacing - Mating | 0.250" (6.35mm) |
| Contact Length - Post | 0.145" (3.68mm) |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish - Mating | Silver |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
