Step1: Product

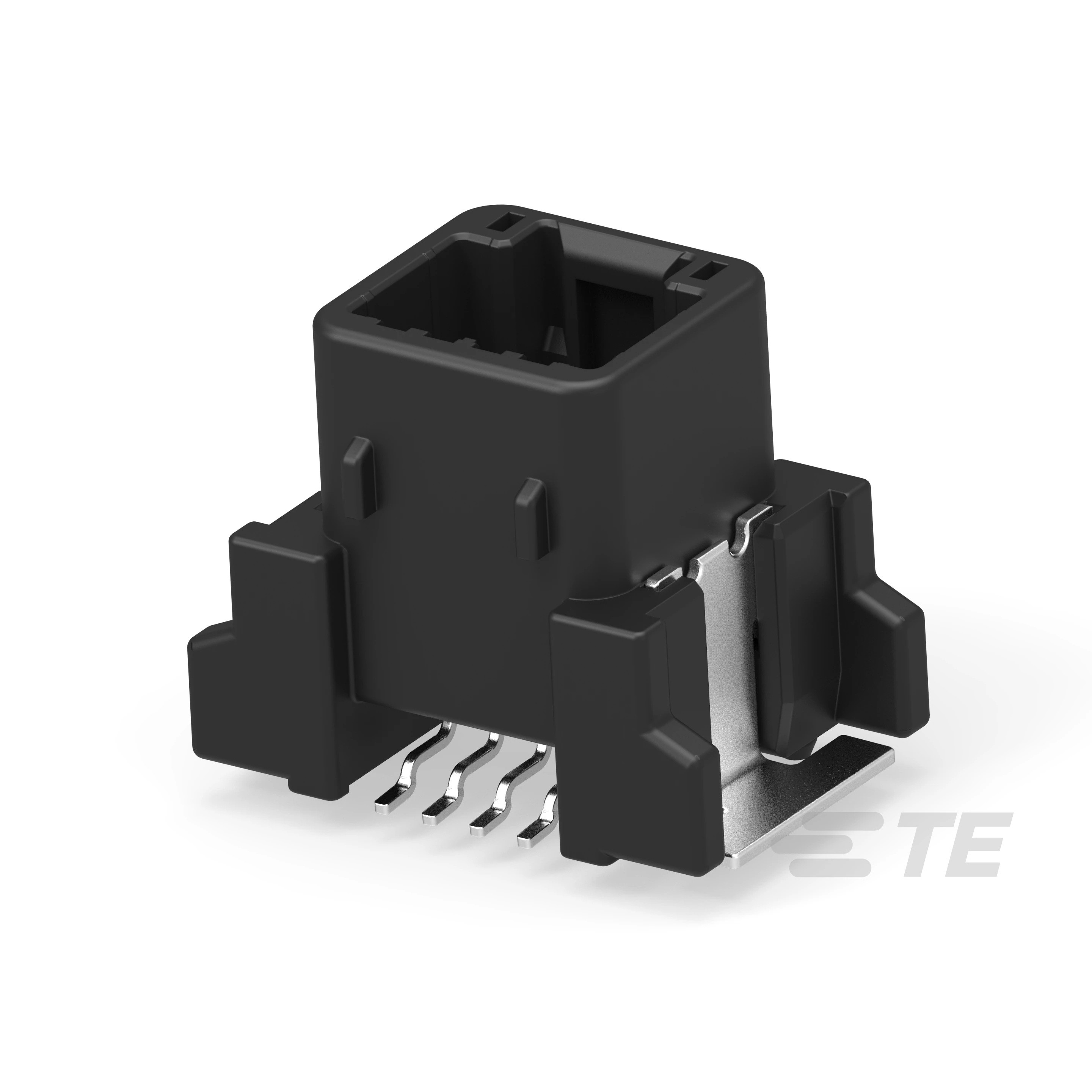

TE Connectivity AMP Connectors 1939403-3
Image shown is a representation only
Manufacturer
Manufacturer No
1939403-3
Packaging
Tray
Description
0.64 SMD 8P CAP ASSY V-TYPE
Detailed Description
Connector Header Surface Mount 8 position 0.087" (2.20mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
.025
Features
Board Guide, Solder Retention
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.087" (2.20mm)
Voltage Rating
12VDC
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.787" (19.99mm)
Base Product Number
1939403
Insulation Material
Polyphenylene Sulfide (PPS), Glass Filled
Number of Positions
8
Row Spacing - Mating
0.118" (3.00mm)
Contact Finish - Post
Tin
Operating Temperature
-30°C ~ 105°C
Contact Finish - Mating
Tin
Contact Length - Mating
0.224" (5.70mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | .025 |
| Features | Board Guide, Solder Retention |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.087" (2.20mm) |
| Voltage Rating | 12VDC |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.787" (19.99mm) |
| Base Product Number | 1939403 |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Number of Positions | 8 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Contact Finish - Post | Tin |
| Operating Temperature | -30°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.224" (5.70mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
Purchase & Inquiry
Purchase
You may place an order without registering to
We strongly suggest you sign in before purchasing as you can track your order in real time.
Means of Payment
For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.
RFQ (Request for Quotations)
It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.
IMPORTANT NOTICE
1.You'l receive an order information email in your inbox (Please remember to check the spam folder if you didn't hear from us)
2.Since inventories and prices may fuctuate to some extent, the sales manager is going to reconfirm the order and let you know
Packing
Step2: Vacuum Packaging
Step3: Anti-StaticBag
Step4: Individual Packaging
Step5: Packaging Boxes
Shipping Information
| Shipping Type | Ship Fee | Lead Time | |
|---|---|---|---|
 | DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
 | Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
 | UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
 | EMS | $20.00-$40.00 (0.50 KG) | 2-5 days |
Processing Time: Shipping fees vary depending on the destination region and country.
