Step1: Product

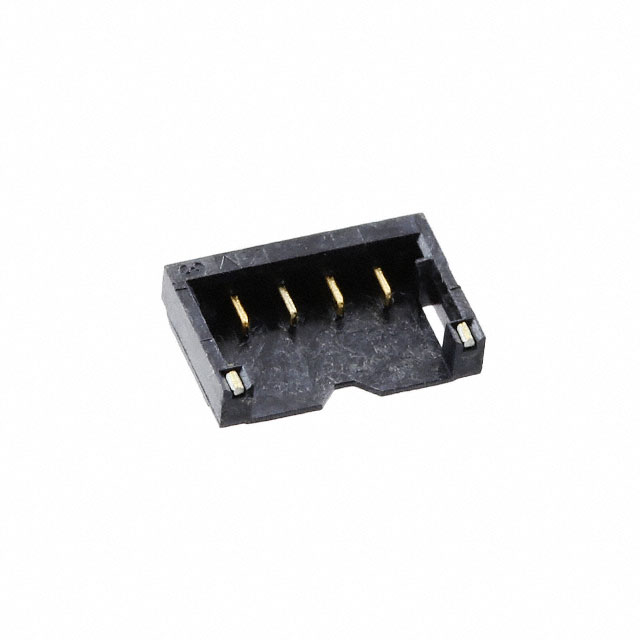

TE Connectivity AMP Connectors 1909782-3
Image shown is a representation only
Manufacturer
Manufacturer No
1909782-3
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN HEADER SMD R/A 4POS 1.2MM
Detailed Description
Connector Header Surface Mount, Right Angle 4 position 0.047" (1.20mm)
Datasheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
High Performance Interconnect (HPI)
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 3 Wall
Termination
Solder
Applications
Automotive, General Purpose, Industrial, Medical
Contact Type
Tab
Contact Shape
Rectangular
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Friction Lock
Number of Rows
1
Pitch - Mating
0.047" (1.20mm)
Voltage Rating
50VAC
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.055" (1.40mm)
Base Product Number
1909782
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Number of Positions
4
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | High Performance Interconnect (HPI) |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Friction Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.047" (1.20mm) |
| Voltage Rating | 50VAC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.055" (1.40mm) |
| Base Product Number | 1909782 |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Number of Positions | 4 |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | Flash |
