Step1: Product

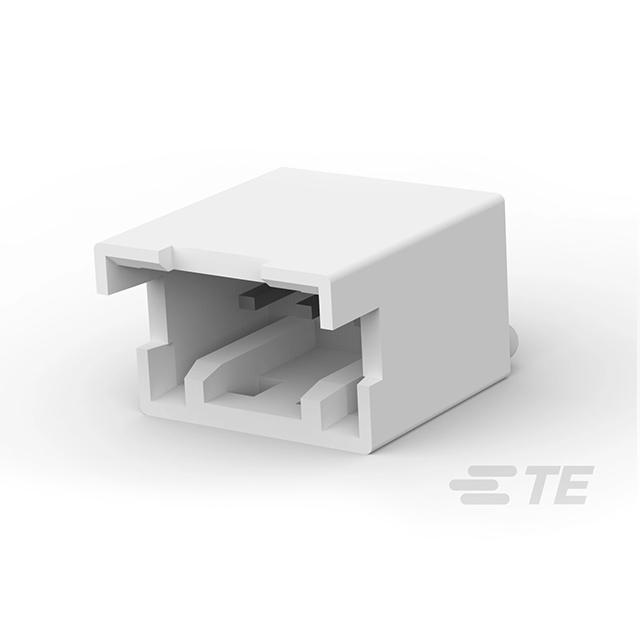

TE Connectivity AMP Connectors 1871843-3
Image shown is a representation only
Manufacturer
Manufacturer No
1871843-3
Packaging
Bulk
Description
CONN HEADER VERT 3POS 2.5MM
Detailed Description
Connector Header Through Hole 3 position 0.098" (2.50mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Grace Inertia, GIC
Features
Board Guide, Keying Slot
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Kinked Pin, Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Rectangular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.098" (2.50mm)
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.445" (11.30mm)
Base Product Number
1871843
Insulation Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Number of Positions
3
Contact Finish - Post
Tin
Contact Length - Post
0.118" (3.00mm)
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-30°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Grace Inertia, GIC |
| Features | Board Guide, Keying Slot |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.098" (2.50mm) |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.445" (11.30mm) |
| Base Product Number | 1871843 |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Number of Positions | 3 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.118" (3.00mm) |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -30°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
