Step1: Product

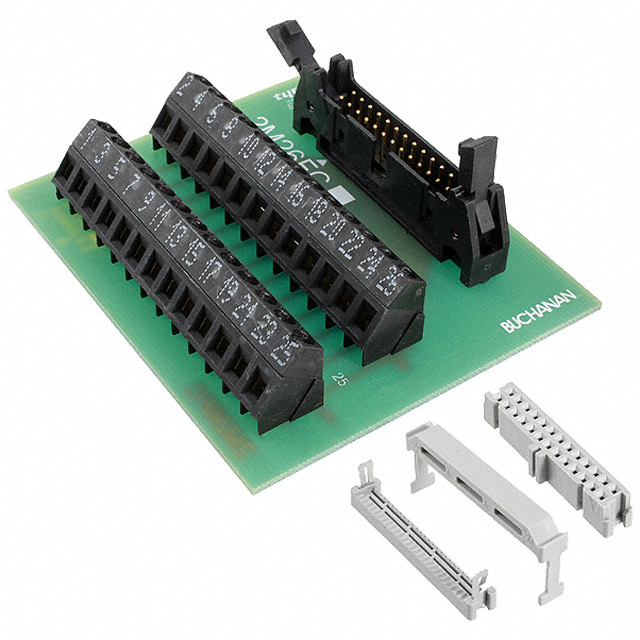

TE Connectivity AMP Connectors 1776630-1
Image shown is a representation only
Manufacturer
Manufacturer No
1776630-1
Packaging
Bulk
Description
INTERFACE MOD HDR 26POS 14-22AWG
Detailed Description
26 Position Interface Module Terminal Blocks - Screw Connection To Rectangular, Male 14-22 AWG
DataSheet
Width
2.750" (69.85mm)
Length
3.200" (81.28mm)
Series
2M, Buchanan
Packaging
Bulk
Wire Gauge
14-22 AWG
Part Status
Obsolete
Manufacturer
TE Connectivity AMP Connectors
Voltage - Rated
300V
Positions / Poles
26
Base Product Number
1776630
Operating Temperature
120°C
Control Side Connection
Rectangular, Male
Process Side Connection
Terminal Blocks - Screw Connection
Control Side Cable Retainer
Latches
Current Rating (Per Contact)
10 A
| Attribute | Value |
|---|---|
| Width | 2.750" (69.85mm) |
| Length | 3.200" (81.28mm) |
| Series | 2M, Buchanan |
| Packaging | Bulk |
| Wire Gauge | 14-22 AWG |
| Part Status | Obsolete |
| Manufacturer | TE Connectivity AMP Connectors |
| Voltage - Rated | 300V |
| Positions / Poles | 26 |
| Base Product Number | 1776630 |
| Operating Temperature | 120°C |
| Control Side Connection | Rectangular, Male |
| Process Side Connection | Terminal Blocks - Screw Connection |
| Control Side Cable Retainer | Latches |
| Current Rating (Per Contact) | 10 A |
