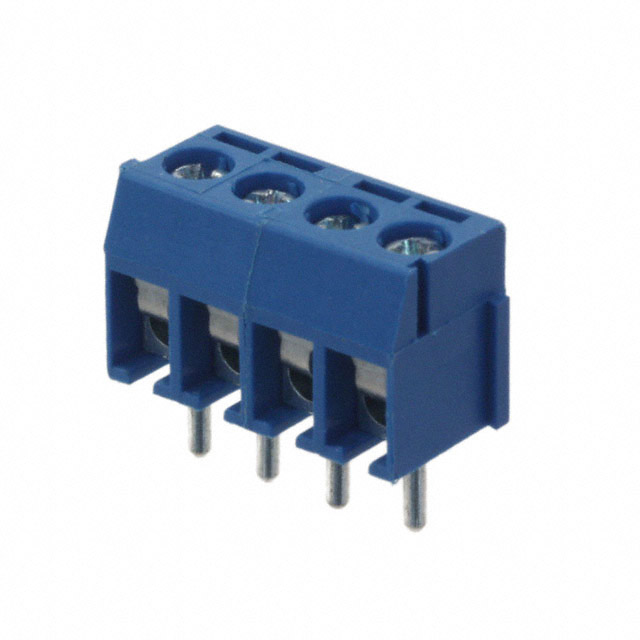

TE Connectivity AMP Connectors 1776275-4
Image shown is a representation only
Manufacturer
Manufacturer No
1776275-4
Quantity
3
Availability
In Stock
Packaging
Bulk
Description
TERM BLK 4POS SIDE ENT 3.5MM PCB
Detailed Description
4 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole
DataSheet
Color
Blue
Pitch
0.138" (3.50mm)
Series
Buchanan
Current
10 A
Voltage
300 V
Features
Interlocking (Side)
Packaging
Bulk
Wire Gauge
18-26 AWG
Part Status
Active
Manufacturer
TE Connectivity AMP Connectors
Screw Thread
M2.6
Mounting Type
Through Hole
Torque - Screw
0.28 Nm (2.5 Lb-In)
Housing Material
Polyamide (PA66), Nylon 6/6
Number of Levels
1
Wire Termination
Screw - Leaf Spring, Wire Guard
Mating Orientation
Horizontal with Board
Base Product Number
1776275
Positions Per Level
4
Operating Temperature
-55°C ~ 105°C
Clamp Material - Plating
Steel, Stainless
Screw Material - Plating
Steel, Galvanized - Chromate Plated
Contact Material - Plating
Brass - Copper Tin Plated
| Attribute | Value |
|---|---|
| Color | Blue |
| Pitch | 0.138" (3.50mm) |
| Series | Buchanan |
| Current | 10 A |
| Voltage | 300 V |
| Features | Interlocking (Side) |
| Packaging | Bulk |
| Wire Gauge | 18-26 AWG |
| Part Status | Active |
| Manufacturer | TE Connectivity AMP Connectors |
| Screw Thread | M2.6 |
| Mounting Type | Through Hole |
| Torque - Screw | 0.28 Nm (2.5 Lb-In) |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
| Mating Orientation | Horizontal with Board |
| Base Product Number | 1776275 |
| Positions Per Level | 4 |
| Operating Temperature | -55°C ~ 105°C |
| Clamp Material - Plating | Steel, Stainless |
| Screw Material - Plating | Steel, Galvanized - Chromate Plated |
| Contact Material - Plating | Brass - Copper Tin Plated |
