Step1: Product

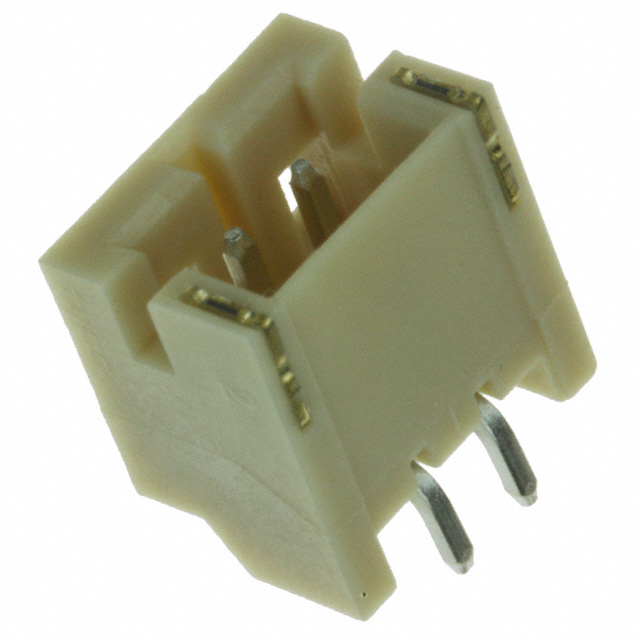

TE Connectivity AMP Connectors 1775469-2
Image shown is a representation only
Manufacturer
Manufacturer No
1775469-2
Quantity
23
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN HEADER SMD R/A 2POS 2MM
Detailed Description
Connector Header Surface Mount, Right Angle 2 position 0.079" (2.00mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
High Performance Interconnect (HPI)
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Industrial, Medical
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
250V
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.217" (5.51mm)
Base Product Number
1775469
Insulation Material
Polyamide (PA9T), Nylon 9T
Number of Positions
2
Contact Finish - Post
Tin
Current Rating (Amps)
3A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Tin
Contact Length - Mating
0.139" (3.53mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
80.0µin (2.03µm)
Contact Finish Thickness - Mating
80.0µin (2.03µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | High Performance Interconnect (HPI) |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 250V |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.217" (5.51mm) |
| Base Product Number | 1775469 |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Number of Positions | 2 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 3A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.139" (3.53mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 80.0µin (2.03µm) |
| Contact Finish Thickness - Mating | 80.0µin (2.03µm) |
