Step1: Product

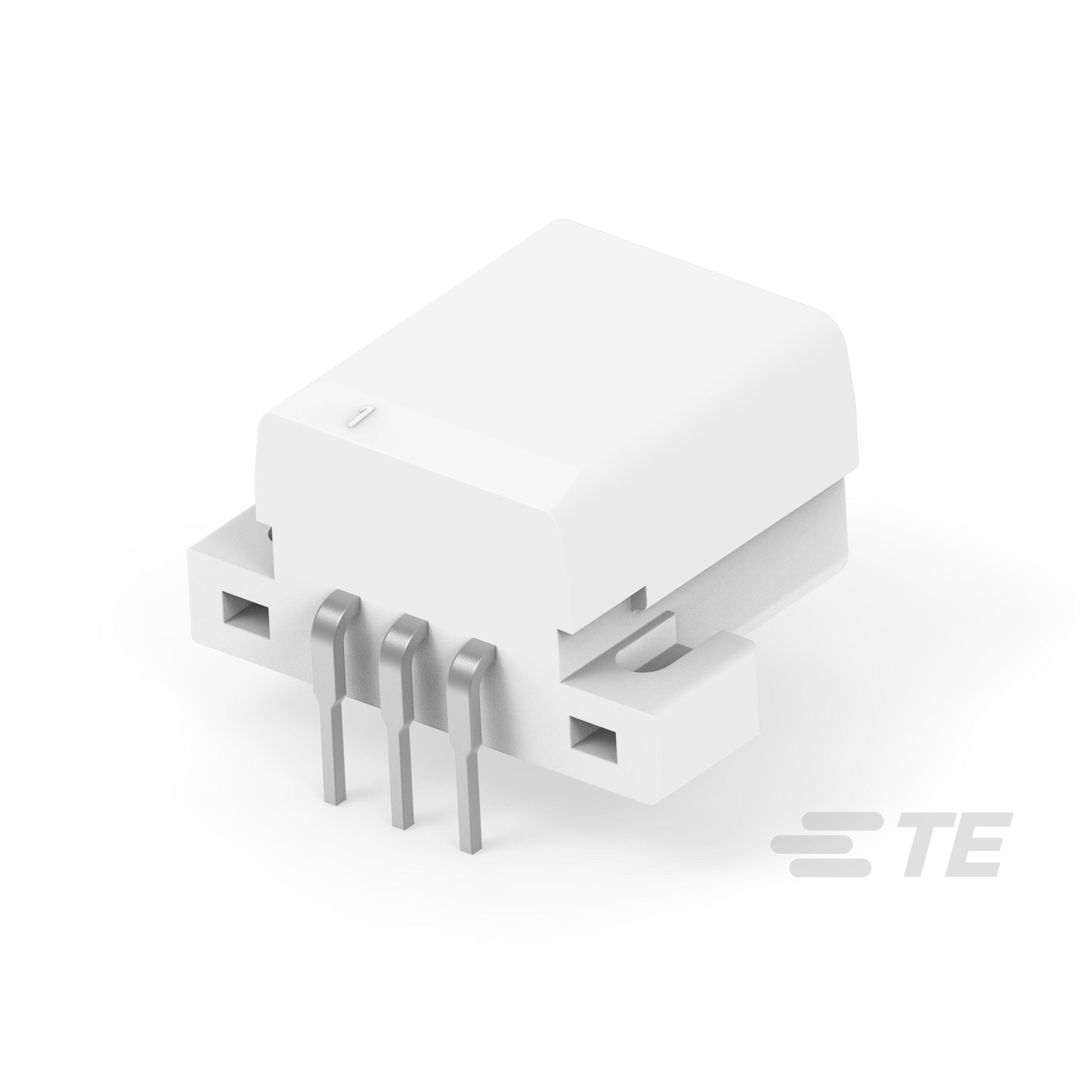

TE Connectivity AMP Connectors 175781-1
Image shown is a representation only
Manufacturer
Manufacturer No
175781-1
Quantity
90
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER R/A 3POS 3.5MM
Detailed Description
Connector Header Through Hole, Right Angle 3 position 0.138" (3.50mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Multi-Lock
Features
Mounting Flange
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose
Contact Type
Tab
Contact Shape
Rectangular
Mounting Type
Through Hole, Right Angle
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.138" (3.50mm)
Contact Material
Brass
Insulation Color
White
Insulation Height
0.492" (12.50mm)
Base Product Number
175781
Insulation Material
Polybutylene Terephthalate (PBT)
Number of Positions
3
Contact Finish - Post
Tin
Contact Length - Post
0.157" (4.00mm)
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-30°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Multi-Lock |
| Features | Mounting Flange |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole, Right Angle |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.138" (3.50mm) |
| Contact Material | Brass |
| Insulation Color | White |
| Insulation Height | 0.492" (12.50mm) |
| Base Product Number | 175781 |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 3 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.157" (4.00mm) |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -30°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
