Step1: Product

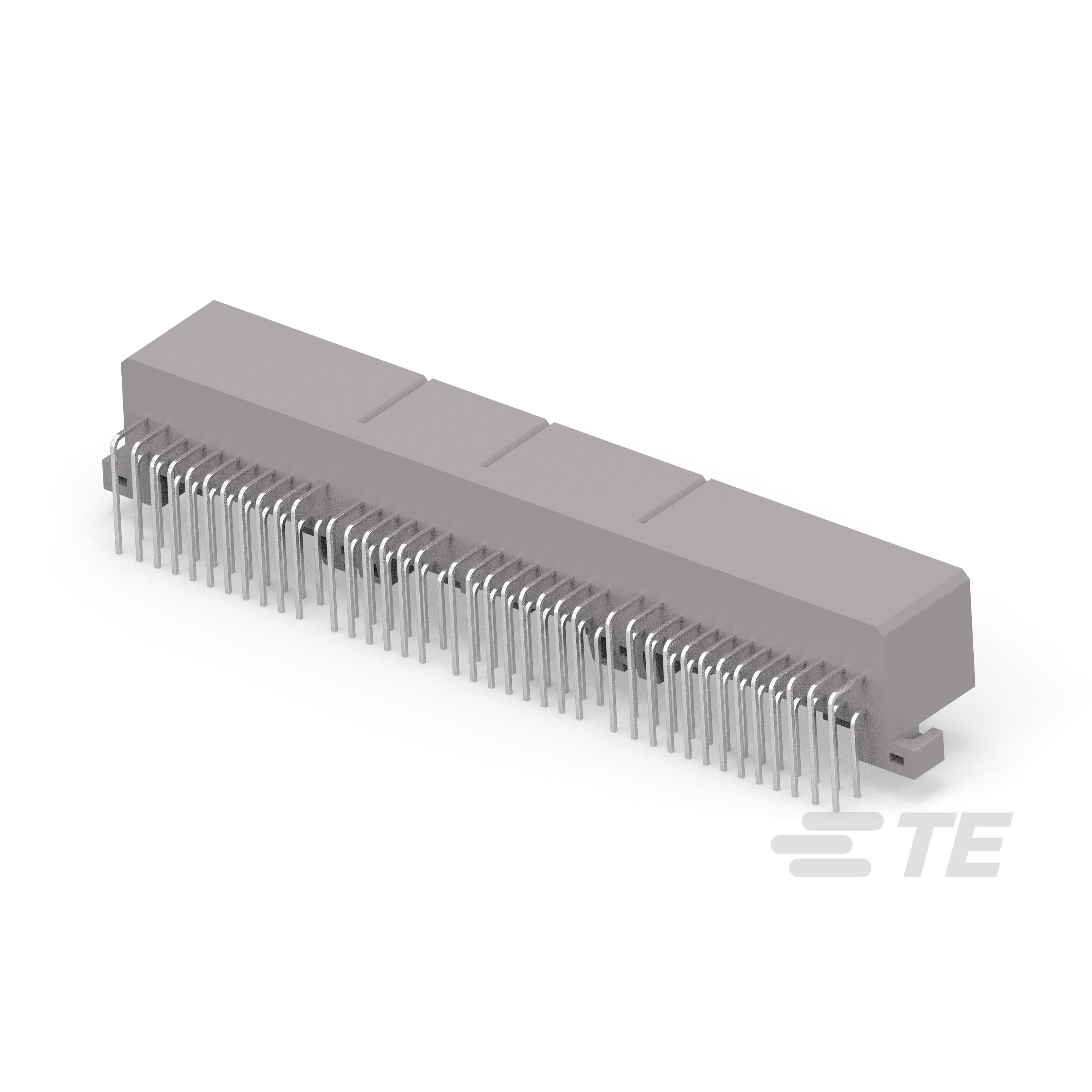

TE Connectivity AMP Connectors 174915-6
Image shown is a representation only
Manufacturer
Manufacturer No
174915-6
Quantity
10
Availability
In Stock
Packaging
Tube
Description
CONN HEADER R/A 76POS 3.5MM
Detailed Description
Connector Header Through Hole, Right Angle 76 position 0.138" (3.50mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Multi-Lock
Features
Mounting Flange
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose
Contact Type
Tab
Contact Shape
Rectangular
Mounting Type
Through Hole, Right Angle
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.138" (3.50mm)
Insulation Color
Gray
Insulation Height
0.862" (21.89mm)
Base Product Number
174915
Number of Positions
76
Row Spacing - Mating
0.205" (5.20mm)
Contact Finish - Post
Tin
Contact Length - Post
0.157" (4.00mm)
Current Rating (Amps)
Varies by Wire Gauge
Contact Finish - Mating
Tin
Contact Length - Mating
0.280" (7.11mm)
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Multi-Lock |
| Features | Mounting Flange |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole, Right Angle |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.138" (3.50mm) |
| Insulation Color | Gray |
| Insulation Height | 0.862" (21.89mm) |
| Base Product Number | 174915 |
| Number of Positions | 76 |
| Row Spacing - Mating | 0.205" (5.20mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.157" (4.00mm) |
| Current Rating (Amps) | Varies by Wire Gauge |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.280" (7.11mm) |
| Number of Positions Loaded | All |
