Step1: Product

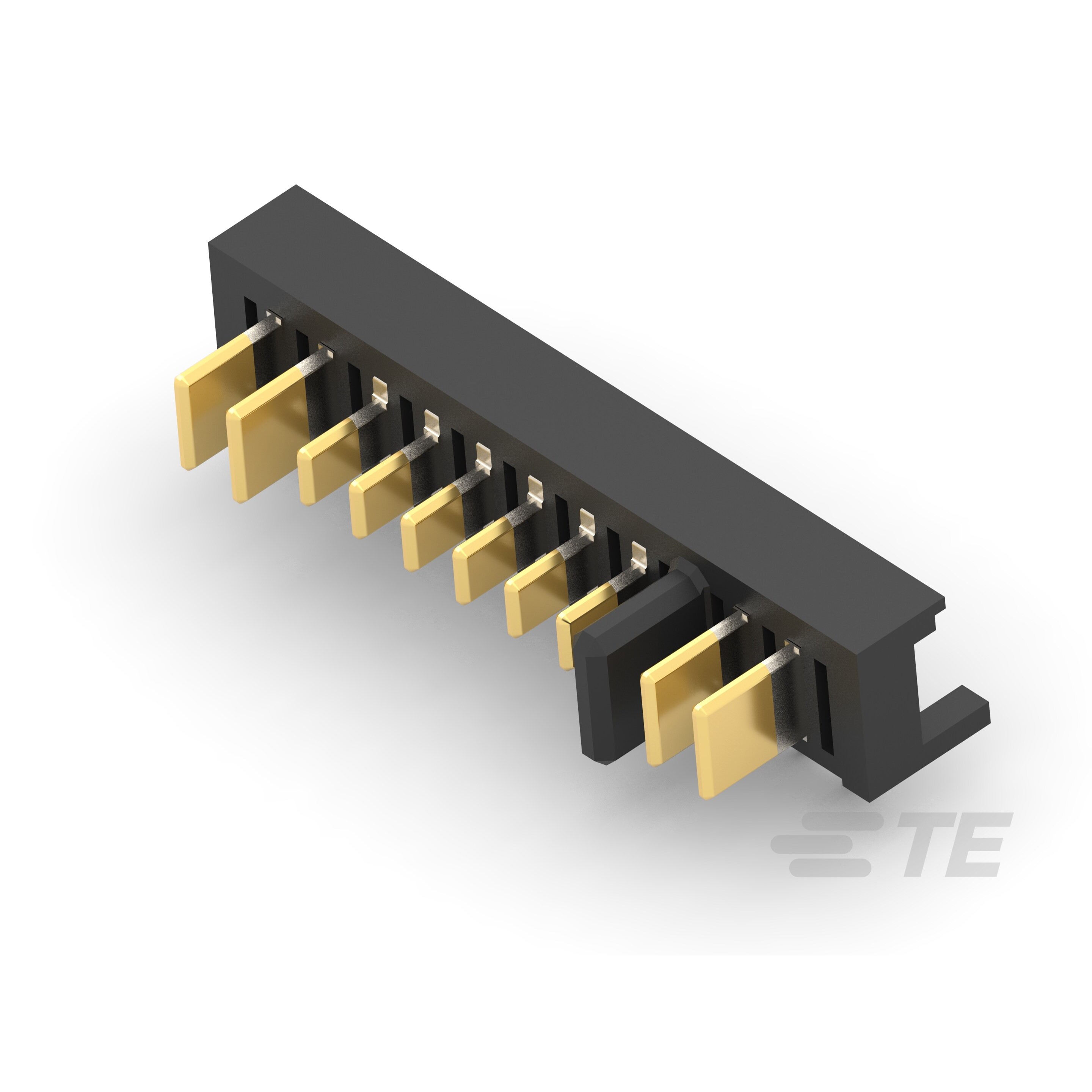

TE Connectivity AMP Connectors 1746498-5
Image shown is a representation only
Manufacturer
Manufacturer No
1746498-5
Packaging
Tray
Description
2.5MM PITCH BATTERY CONNECTOR 8P
Detailed Description
8 Position Header, Male Blades Connector Solder 0.098" (2.50mm) Through Hole, Right Angle
DataSheet
Color
Black
Pitch
0.098" (2.50mm)
Series
1746498
Features
Board Guide
Packaging
Tray
Part Status
Active
Termination
Solder
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Through Hole, Right Angle
Connector Type
Header, Male Blades
Contact Finish
Gold
Fastening Type
Push-Pull
Number of Rows
1
Voltage Rating
30 V
Connector Style
Battery
Contact Material
Copper Alloy
Base Product Number
1746498
Number of Positions
8
Current Rating (Amps)
6 A
Material - Insulation
Thermoplastic
Operating Temperature
-20°C ~ 80°C
Contact Finish Thickness
Flash
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.098" (2.50mm) |
| Series | 1746498 |
| Features | Board Guide |
| Packaging | Tray |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Male Blades |
| Contact Finish | Gold |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Voltage Rating | 30 V |
| Connector Style | Battery |
| Contact Material | Copper Alloy |
| Base Product Number | 1746498 |
| Number of Positions | 8 |
| Current Rating (Amps) | 6 A |
| Material - Insulation | Thermoplastic |
| Operating Temperature | -20°C ~ 80°C |
| Contact Finish Thickness | Flash |
