Step1: Product

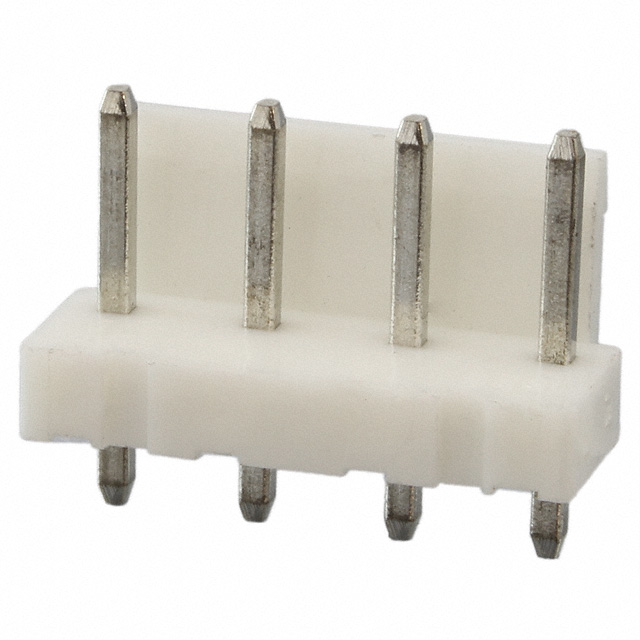

TE Connectivity AMP Connectors 1744037-4
Image shown is a representation only
Manufacturer
Manufacturer No
1744037-4
Quantity
1100
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER VERT 4POS 5.08MM
Detailed Description
Connector Header Through Hole 4 position 0.200" (5.08mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Economy Power
Packaging
Bulk
Shrouding
Shrouded - 1 Wall
Part Status
Active
Termination
Solder
Applications
General Purpose, Industrial, Lighting
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
1
Pitch - Mating
0.200" (5.08mm)
Voltage Rating
250VAC
Contact Material
Copper Alloy
Insulation Color
Natural
Insulation Height
0.126" (3.20mm)
Base Product Number
1744037
Insulation Material
Polyamide (PA66), Nylon 6/6
Number of Positions
4
Contact Finish - Post
Tin
Contact Length - Post
0.146" (3.70mm)
Current Rating (Amps)
7.5A
Operating Temperature
-25°C ~ 105°C
Overall Contact Length
0.575" (14.60mm)
Contact Finish - Mating
Tin
Contact Length - Mating
0.303" (7.70mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
120.0µin (3.05µm)
Contact Finish Thickness - Mating
120.0µin (3.05µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Economy Power |
| Packaging | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 1 |
| Pitch - Mating | 0.200" (5.08mm) |
| Voltage Rating | 250VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Insulation Height | 0.126" (3.20mm) |
| Base Product Number | 1744037 |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Number of Positions | 4 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.146" (3.70mm) |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -25°C ~ 105°C |
| Overall Contact Length | 0.575" (14.60mm) |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.303" (7.70mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 120.0µin (3.05µm) |
| Contact Finish Thickness - Mating | 120.0µin (3.05µm) |
