Step1: Product

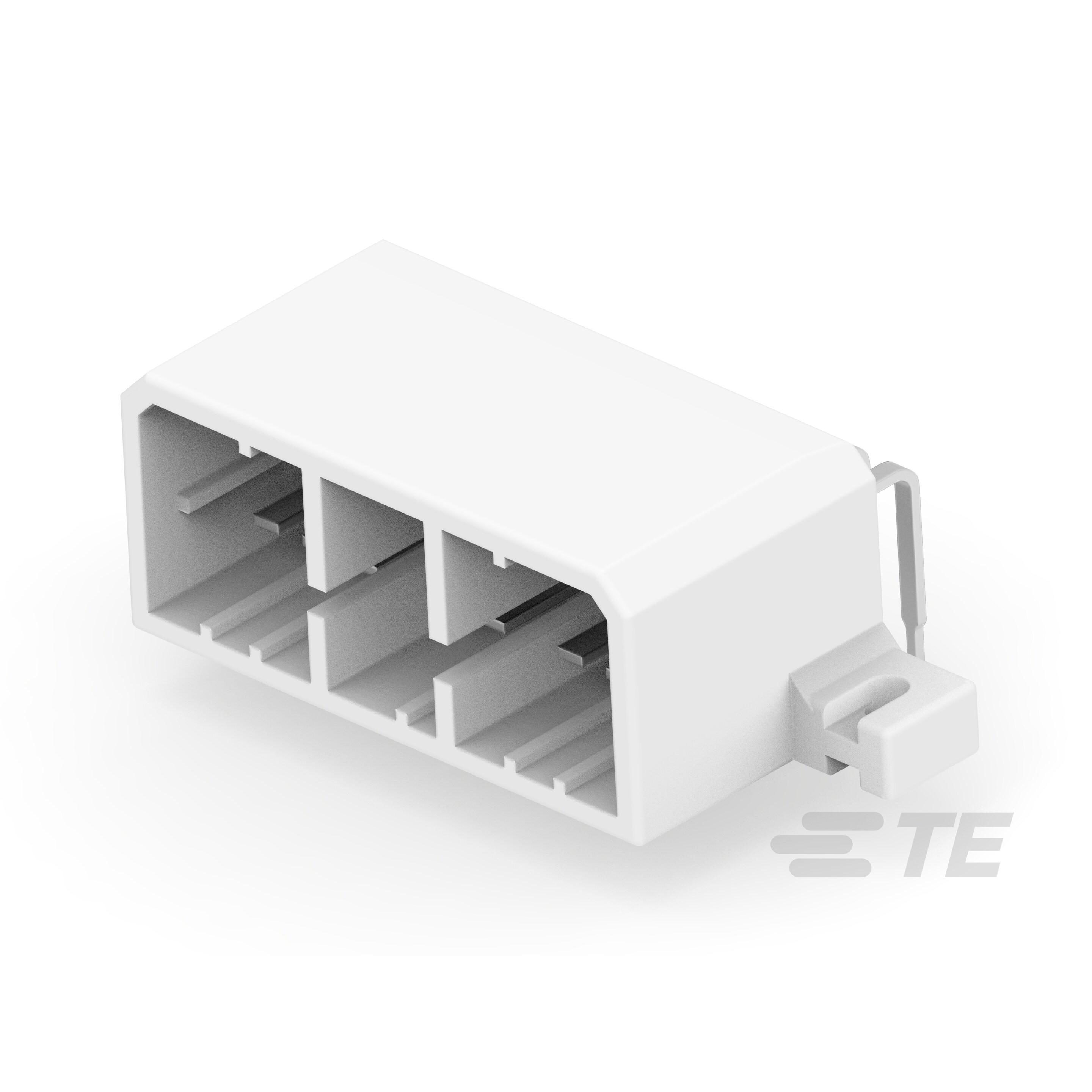

TE Connectivity AMP Connectors 173860-1
Image shown is a representation only
Manufacturer
Manufacturer No
173860-1
Packaging
Box
Description
CONN HEADER R/A 14POS 3.5MM
Detailed Description
Connector Header Through Hole, Right Angle 14 position 0.138" (3.50mm)
Datasheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Multi-Lock
Features
Mounting Flange
Packaging
Box
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
Automotive, General Purpose
Contact Type
Tab
Contact Shape
Rectangular
Mounting Type
Through Hole, Right Angle
Fastening Type
Locking Ramp
Number of Rows
2
Pitch - Mating
0.138" (3.50mm)
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.622" (15.80mm)
Base Product Number
173860
Insulation Material
Polybutylene Terephthalate (PBT)
Number of Positions
14
Row Spacing - Mating
0.232" (5.90mm)
Contact Finish - Post
Tin
Contact Length - Post
0.157" (4.00mm)
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-30°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 HB
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Multi-Lock |
| Features | Mounting Flange |
| Packaging | Box |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole, Right Angle |
| Fastening Type | Locking Ramp |
| Number of Rows | 2 |
| Pitch - Mating | 0.138" (3.50mm) |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.622" (15.80mm) |
| Base Product Number | 173860 |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 14 |
| Row Spacing - Mating | 0.232" (5.90mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.157" (4.00mm) |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -30°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 HB |
