Step1: Product

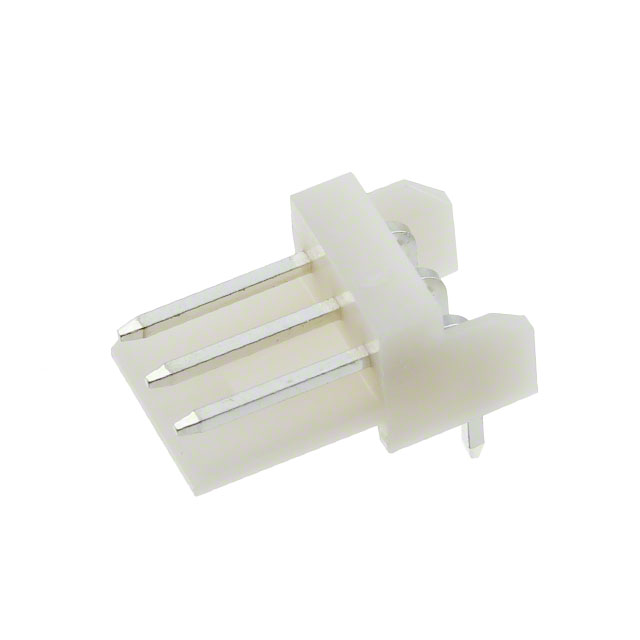

TE Connectivity AMP Connectors 171826-3
Image shown is a representation only
Manufacturer
Manufacturer No
171826-3
Quantity
227
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER R/A 3POS 2.5MM
Detailed Description
Connector Header Through Hole, Right Angle 3 position 0.098" (2.50mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
EI
Packaging
Bulk
Shrouding
Shrouded - 1 Wall
Part Status
Active
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.098" (2.50mm)
Voltage Rating
250VAC, 350VDC
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.264" (6.70mm)
Base Product Number
171826
Insulation Material
Polyamide (PA66), Nylon 6/6
Number of Positions
3
Contact Finish - Post
Tin
Contact Length - Post
0.142" (3.60mm)
Current Rating (Amps)
2A
Contact Finish - Mating
Tin
Contact Length - Mating
0.295" (7.49mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
31.5µin (0.80µm)
Contact Finish Thickness - Mating
31.5µin (0.80µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | EI |
| Packaging | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.098" (2.50mm) |
| Voltage Rating | 250VAC, 350VDC |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.264" (6.70mm) |
| Base Product Number | 171826 |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Number of Positions | 3 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.142" (3.60mm) |
| Current Rating (Amps) | 2A |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.295" (7.49mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 31.5µin (0.80µm) |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) |
