Step1: Product

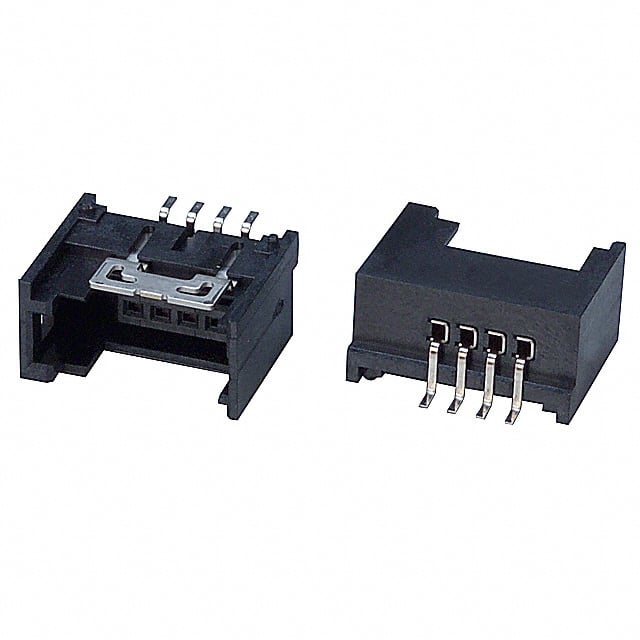

TE Connectivity AMP Connectors 1565994-4
Image shown is a representation only
Manufacturer
Manufacturer No
1565994-4
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN HDR 4POS 0.079 GOLD SMD R/A
Detailed Description
4 Position Header Connector 0.079" (2.00mm) Surface Mount, Right Angle Gold
Datasheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
RITS
Features
Board Guide
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
32VDC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.303" (7.70mm)
Base Product Number
1565994
Insulation Material
Thermoplastic
Number of Positions
4
Contact Finish - Post
Tin
Operating Temperature
-30°C ~ 75°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
39.4µin (1.00µm)
Contact Finish Thickness - Mating
8.00µin (0.203µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | RITS |
| Features | Board Guide |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 32VDC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.303" (7.70mm) |
| Base Product Number | 1565994 |
| Insulation Material | Thermoplastic |
| Number of Positions | 4 |
| Contact Finish - Post | Tin |
| Operating Temperature | -30°C ~ 75°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
