Step1: Product

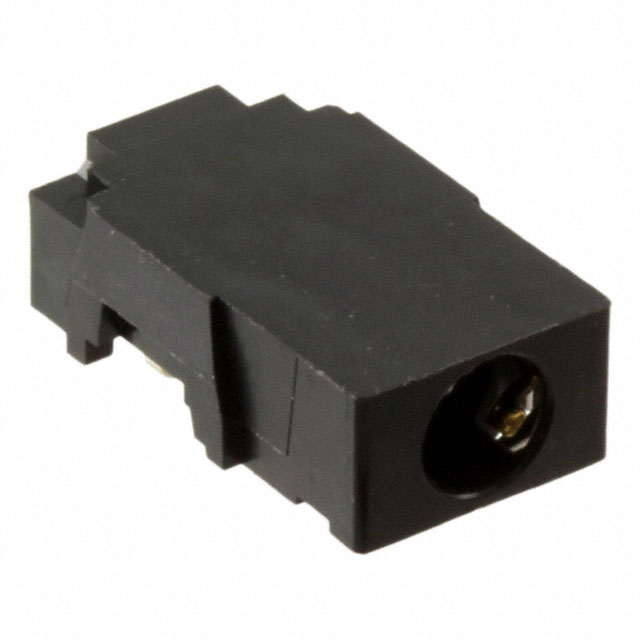

TE Connectivity AMP Connectors 1551768-1
Image shown is a representation only
Manufacturer
Manufacturer No
1551768-1
Packaging
Tape & Reel (TR)
Description
CONN POWER JACK SOLDER
Detailed Description
Power Barrel Connector Jack Surface Mount, Right Angle
DataSheet
Gender
Female
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Body Color
Black
Part Status
Obsolete
Termination
Solder
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Surface Mount, Right Angle
Connector Type
Jack
Actual Diameter
0.142" (3.60mm)
Contact Material
Copper Alloy
Housing Material
Polybutylene Terephthalate (PBT), Glass Filled
Internal Switch(s)
Single Switch, Normally Closed
Base Product Number
1551768
Contact Material - Plating
Electrolytic Copper - Tin Plated
Number of Positions/Contacts
5 Conductors, 6 Contacts
| Attribute | Value |
|---|---|
| Gender | Female |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Obsolete |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.142" (3.60mm) |
| Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Internal Switch(s) | Single Switch, Normally Closed |
| Base Product Number | 1551768 |
| Contact Material - Plating | Electrolytic Copper - Tin Plated |
| Number of Positions/Contacts | 5 Conductors, 6 Contacts |
