Step1: Product
TE Connectivity AMP Connectors 1546977-5

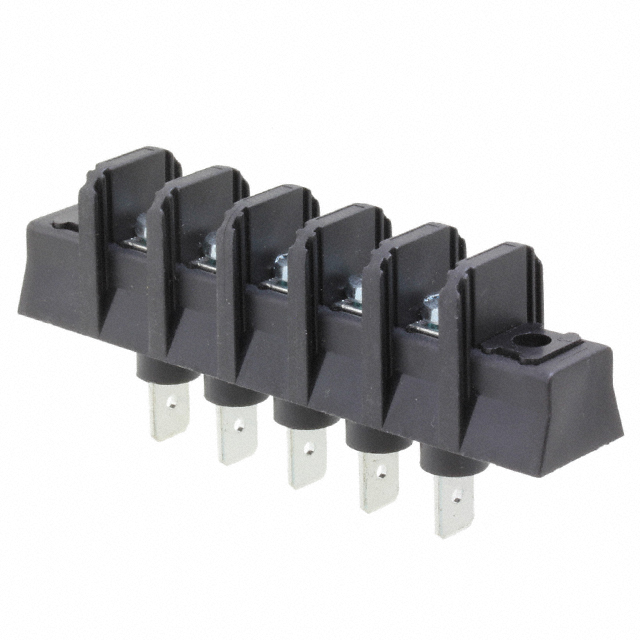

Image shown is a representation only
Manufacturer
Manufacturer No
1546977-5
Packaging
Box
Description
CONN BARRIER STRIP 5CIRC 0.438"
Detailed Description
5 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
DataSheet
Color
Black
Pitch
0.438" (11.12mm)
Series
SSB7, Buchanan
Features
Flange
Packaging
Box
Wire Gauge
12-22 AWG
Part Status
Active
Barrier Type
2 Wall (Dual)
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Chassis, Panel
Number of Rows
1
Voltage Rating
600V
Top Termination
Screws
Bottom Termination
Quick Connect (0.250"), Insulated
Number of Circuits
5
Base Product Number
1546977
Terminal Block Type
Barrier Block
Current Rating (Amps)
20A
Material - Insulation
Thermoplastic
Operating Temperature
-60°C ~ 105°C
Terminal Screw Finish
Zinc, Clear Chromate
Number of Wire Entries
5
Terminal Screw Material
Steel
Material Flammability Rating
UL94 V-2
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.438" (11.12mm) |
| Series | SSB7, Buchanan |
| Features | Flange |
| Packaging | Box |
| Wire Gauge | 12-22 AWG |
| Part Status | Active |
| Barrier Type | 2 Wall (Dual) |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Chassis, Panel |
| Number of Rows | 1 |
| Voltage Rating | 600V |
| Top Termination | Screws |
| Bottom Termination | Quick Connect (0.250"), Insulated |
| Number of Circuits | 5 |
| Base Product Number | 1546977 |
| Terminal Block Type | Barrier Block |
| Current Rating (Amps) | 20A |
| Material - Insulation | Thermoplastic |
| Operating Temperature | -60°C ~ 105°C |
| Terminal Screw Finish | Zinc, Clear Chromate |
| Number of Wire Entries | 5 |
| Terminal Screw Material | Steel |
| Material Flammability Rating | UL94 V-2 |
