Step1: Product
TE Connectivity AMP Connectors 1546707-1

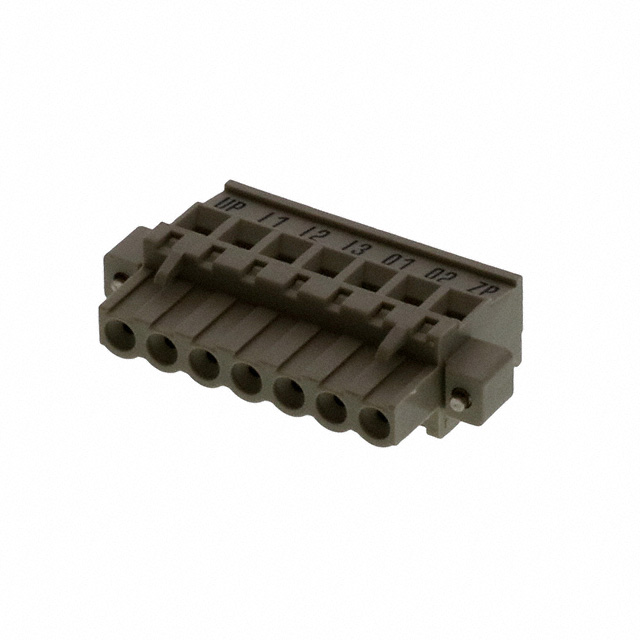

Image shown is a representation only
Manufacturer
Manufacturer No
1546707-1
Packaging
Bulk
Description
TERM BLOCK PLUG 7POS 5.08MM
Detailed Description
7 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 90° Free Hanging (In-Line)
DataSheet
Type
Plug, Female Sockets
Color
Gray
Pitch
0.200" (5.08mm)
Series
Buchanan
Features
Mating Flange, Positions Stamped, Retention Latches (Non-Wire Side)
Packaging
Bulk
Part Status
Active
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Free Hanging (In-Line)
Plug Wire Entry
90°
Number of Levels
1
Termination Style
Screw
Base Product Number
1546707
Number of Positions
7
Positions Per Level
7
Contact Mating Finish
Tin
Wire Gauge or Range - AWG
12-30 AWG
| Attribute | Value |
|---|---|
| Type | Plug, Female Sockets |
| Color | Gray |
| Pitch | 0.200" (5.08mm) |
| Series | Buchanan |
| Features | Mating Flange, Positions Stamped, Retention Latches (Non-Wire Side) |
| Packaging | Bulk |
| Part Status | Active |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Free Hanging (In-Line) |
| Plug Wire Entry | 90° |
| Number of Levels | 1 |
| Termination Style | Screw |
| Base Product Number | 1546707 |
| Number of Positions | 7 |
| Positions Per Level | 7 |
| Contact Mating Finish | Tin |
| Wire Gauge or Range - AWG | 12-30 AWG |
