Step1: Product

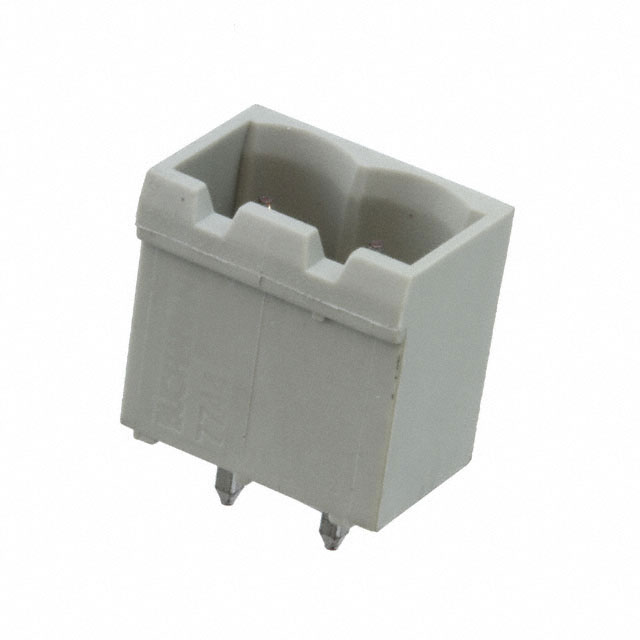

TE Connectivity AMP Connectors 1546111-2
Image shown is a representation only
Manufacturer
Manufacturer No
1546111-2
Packaging
Box
Description
TERM BLOCK HDR 2POS 5.08MM
Detailed Description
2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
DataSheet
Type
Header, Male Pins, Shrouded (4 Side)
Color
Gray
Pitch
0.200" (5.08mm)
Series
Termi-Blok, Buchanan
Packaging
Box
Part Status
Discontinued at DigiKey
Current - UL
15 A
Manufacturer
TE Connectivity AMP Connectors
Voltage - UL
300 V
Mounting Type
Through Hole
Contact Material
Copper Alloy
Housing Material
Polyamide (PA66), Nylon 6/6
Number of Levels
1
Insulation Height
0.472" (12.00mm)
Termination Style
Solder
Header Orientation
Vertical
Base Product Number
1546111
Contact Tail Length
0.138" (3.50mm)
Number of Positions
2
Positions Per Level
2
Contact Mating Finish
Tin
Operating Temperature
-40°C ~ 110°C
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Color | Gray |
| Pitch | 0.200" (5.08mm) |
| Series | Termi-Blok, Buchanan |
| Packaging | Box |
| Part Status | Discontinued at DigiKey |
| Current - UL | 15 A |
| Manufacturer | TE Connectivity AMP Connectors |
| Voltage - UL | 300 V |
| Mounting Type | Through Hole |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Insulation Height | 0.472" (12.00mm) |
| Termination Style | Solder |
| Header Orientation | Vertical |
| Base Product Number | 1546111 |
| Contact Tail Length | 0.138" (3.50mm) |
| Number of Positions | 2 |
| Positions Per Level | 2 |
| Contact Mating Finish | Tin |
| Operating Temperature | -40°C ~ 110°C |
| Material Flammability Rating | UL94 V-0 |
