Step1: Product

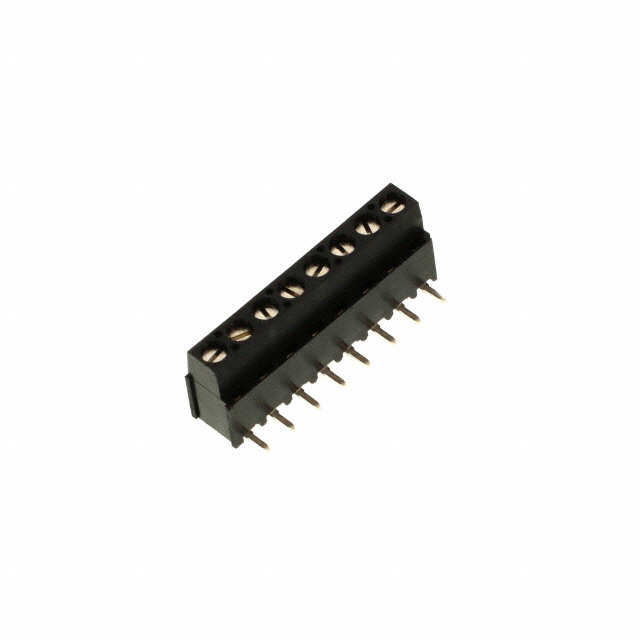

TE Connectivity AMP Connectors 1546073-8
Image shown is a representation only
Manufacturer
Manufacturer No
1546073-8
Packaging
Bulk
Description
TERM BLK 8POS TOP ENT 5.08MM PCB
Detailed Description
8 Position Wire to Board Terminal Block Vertical with Board 0.200" (5.08mm) Through Hole
DataSheet
Color
Black
Pitch
0.200" (5.08mm)
Series
Buchanan
Current
17.5 A
Voltage
300 V
Features
Interlocking (Side)
Packaging
Bulk
Wire Gauge
12-30 AWG
Part Status
Active
Manufacturer
TE Connectivity AMP Connectors
Screw Thread
M3
Mounting Type
Through Hole
Torque - Screw
0.79 Nm (7.0 Lb-In)
Housing Material
Polyamide (PA66), Nylon 6/6
Number of Levels
1
Wire Termination
Screw - Rising Cage Clamp
Mating Orientation
Vertical with Board
Base Product Number
1546073
Positions Per Level
8
Operating Temperature
-40°C ~ 105°C
Clamp Material - Plating
Brass - Nickel Plated
Screw Material - Plating
Brass - Nickel Plated
Contact Material - Plating
Brass - Tin Plated
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.200" (5.08mm) |
| Series | Buchanan |
| Current | 17.5 A |
| Voltage | 300 V |
| Features | Interlocking (Side) |
| Packaging | Bulk |
| Wire Gauge | 12-30 AWG |
| Part Status | Active |
| Manufacturer | TE Connectivity AMP Connectors |
| Screw Thread | M3 |
| Mounting Type | Through Hole |
| Torque - Screw | 0.79 Nm (7.0 Lb-In) |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Wire Termination | Screw - Rising Cage Clamp |
| Mating Orientation | Vertical with Board |
| Base Product Number | 1546073 |
| Positions Per Level | 8 |
| Operating Temperature | -40°C ~ 105°C |
| Clamp Material - Plating | Brass - Nickel Plated |
| Screw Material - Plating | Brass - Nickel Plated |
| Contact Material - Plating | Brass - Tin Plated |
